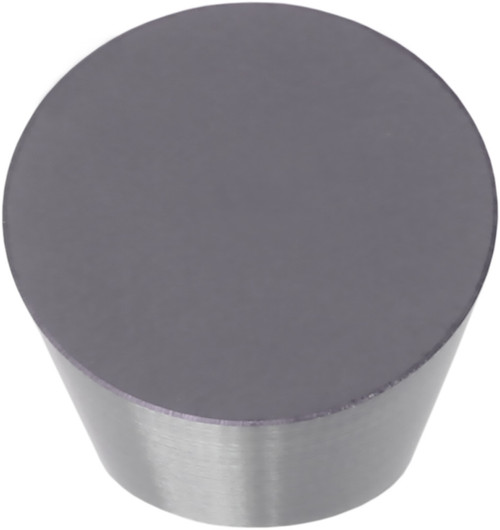

Kyocera RPGX 24T00420 KS6030 Grade Ceramic, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TTA04502
$43.19
Kyocera RPGX 24T00420 KS6030 Grade Ceramic, 11 Degree, Round, Positive Rake Angle, Turning Insert for Light Interruption and Finishing-Medium in (S) Heat-Resistant Alloy

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
Ceramic
Coating/Finish
Uncoated
Primary Workpiece Material
(S) Heat-Resistant Alloy
Thickness
1/4 Inch
Style
RPGX
Application
External Turning, Facing, Roll Machining, Undercutting
Shape
Round
Insert Holding Method
Clamp
Size
24
Old Material Number
8842424
ANSI Part Number
RPGX24T00420KS6030
ISO Part Number
RPGX060600T01020
Rake
Positive
Material Group / Grade
KS6030
Number of Cutting Edges
n/a
Thickness (Metric)
6.35
Cutting Range
Finishing-Medium
Usage Classification
Light Interruption
Inscribed Circle (Metric)
6.35
Inscribed Circle
1/4 Inch
Pack quantity
10
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/KS6030_KS6040_W.pdf
