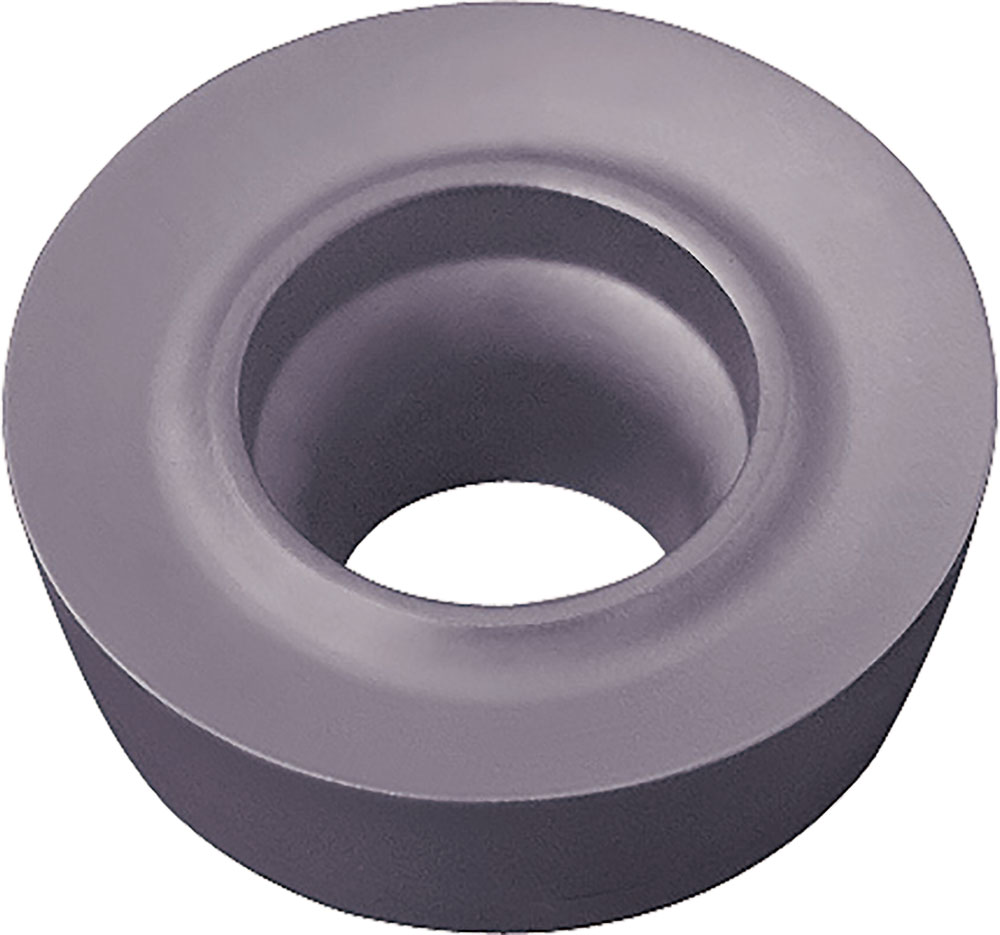

Kyocera RPMT 10T3M0 PR1810 Grade PVD Carbide, Indexable Milling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLS00112
$19.99
Kyocera RPMT 10T3M0 PR1810 Grade PVD Carbide, Round, Positive Rake Angle, Neutral Milling Insert for Roughing in (K) Gray Cast Iron, (K) Nodular Cast Iron

Specifications

Series
MRP
Unit of Measure
Metric
Cutting Direction
Neutral
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(K) Gray Cast Iron|(K) Nodular Cast Iron
Grade
PR1810
Inscribed Circle (Metric)
10
Thickness
3.97 mm
Style
RPMT
Application
Contouring, Facing, Pocketing, Ramping, Shouldering
Thickness (Fractional)
5/32
Shape
Round
Insert Holding Method
Screw
ANSI Part Number
RPMT10T3M0PR1810
ISO Part Number
RPMT10T3M0
Rake
Positive
Number of Cutting Edges
6
Insert Size
10T3
Chipbreaker
M0
Cutting Range
Roughing
Inscribed Circle (Decimal)
0.39
Pack quantity
10
