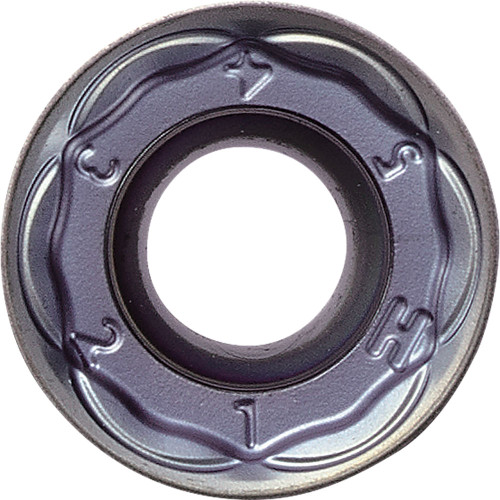

Kyocera RPMT 10T3M0ENGH PR1835 Grade PVD Carbide, Indexable Milling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLU00145
$16.35
Kyocera RPMT 10T3M0ENGH PR1835 Grade PVD Carbide, Round, Positive Rake Angle, Neutral Milling Insert for Roughing in (M) Austenitic Stainless Steel, (M) Precipitation Hardened Stainless Steel, (S) Titanium Alloy and (P) Carbon/Alloy Steel, (P) Mold Steel, (M) Martensitic Stainless Steel

Specifications

Series
MRX
Unit of Measure
Metric
Cutting Direction
Neutral
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(M) Austenitic Stainless Steel|(M) Precipitation Hardened Stainless Steel|(S) Titanium Alloy
Grade
PR1835
Inscribed Circle (Metric)
10
Thickness
3.97 mm
Style
RPMT
Application
Facing, Plunging, Pocketing, Shouldering
Thickness (Fractional)
5/32
Shape
Round
Insert Holding Method
Screw
ANSI Part Number
RPMT10T3M0ENGHPR1835
ISO Part Number
RPMT10T3M0EN-GH
Rake
Positive
Number of Cutting Edges
6
Insert Size
10T3
Chipbreaker
M0EN-GH
Cutting Range
Roughing
Inscribed Circle (Decimal)
0.39
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/RAD-6_MRX_Radius_Milling_Cutter.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/PR18-Series_Milling_Grades.pdf
