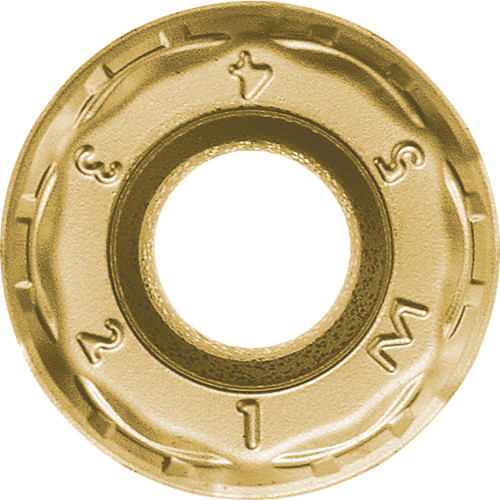

Kyocera RPMT 10T3M0ERGM CA6535 Grade CVD Carbide, Indexable Milling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TMA01600
$15.57
Kyocera RPMT 10T3M0ERGM CA6535 Grade CVD Carbide, Round, Positive Rake Angle, Right-Hand Milling Insert for Roughing in (M) Martensitic Stainless Steel, (S) Heat-Resistant Alloy

Specifications

Series
MRX
Unit of Measure
Metric
Cutting Direction
Neutral
Material
Carbide
Coating/Finish
CVD
Primary Workpiece Material
(M) Martensitic Stainless Steel|(S) Heat-Resistant Alloy
Grade
CA6535
Inscribed Circle (Metric)
10
Thickness
3.97 mm
Style
RPMT
Application
Facing, Pocketing, Profiling, Ramping, Shouldering, Slotting
Thickness (Fractional)
5/32
Shape
Round
Insert Holding Method
Screw
Old Material Number
8839249
ANSI Part Number
RPMT10T3M0ERGMCA6535
ISO Part Number
RPMT10T3M0ER-GM
Rake
Positive
Insert Size
10T3
Chipbreaker
M0ER-GM
Cutting Range
Roughing
Inscribed Circle (Decimal)
0.39
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/RAD-6_MRX_Radius_Milling_Cutter.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
Kyocera RPMT 10T3M0ERGM CA6535 Grade CVD Carbide, Indexable Milling Insert
$15.57
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
