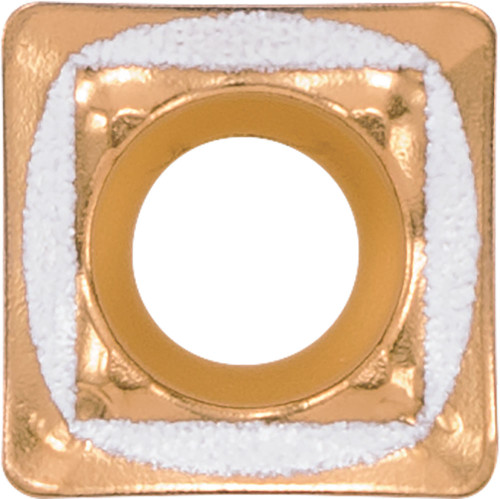

Kyocera SCMT 040205SME CA520D Grade CVD Carbide, Indexable Drilling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TMF05641
$25.82
Kyocera SCMT 040205SME CA520D Grade CVD Carbide, Right-Hand Drilling Insert for (P) Carbon/Alloy Steel, (P) Tool Steel, (M) Stainless Steel (DRV Magic Drill)

Specifications

Series
DRV
Unit of Measure
Imperial
Cutting Direction
Right
Material
Carbide
Coating/Finish
CVD
Primary Workpiece Material
(M) Stainless Steel
Type
Magic Drill
Corner Radius (Metric)
0.50
Corner Radius
0.02 Inch
Grade
CA520D
Thickness (Metric)
2.20
Inscribed Circle (Metric)
4.80
Thickness
0.09 Inch
Inscribed Circle Diameter
0.19 Inch
Style
SCMT
Application
Drilling
Chip Breaker Type
SM-E
Thickness (Decimal)
0.09
Shape
90 Degree Square
Insert Holding Method
Screw
Size
040205
Old Material Number
8858461
ANSI Part Number
SCMT040205SMECA520D
ISO Part Number
SCMT040205-SM-E
Rake
Positive
Number of Cutting Edges
4
Insert Included Angle
90 degrees
Corner Radius (Decimal)
0.02
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/DRV_Magic_Drill.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/Automotive_Tooling_Solutions.pdf
