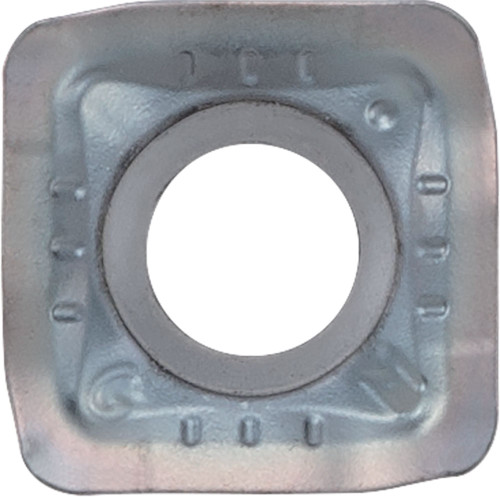

Kyocera SCMT 070310GMI PR1535 Grade PVD Carbide, Indexable Drilling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLC05675
$27.46
Kyocera SCMT 070310GMI PR1535 Grade PVD Carbide, Right-Hand Drilling Insert for (M) Stainless Steel, (P) Carbon/Alloy Steel, (P) Tool Steel, (K) Cast Iron (DRV Magic Drill)

Specifications

Series
DRV
Unit of Measure
Imperial
Cutting Direction
Right
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(P) Carbon/Alloy Steel
Type
Magic Drill
Corner Radius (Metric)
1
Corner Radius
0.04 Inch
Grade
PR1535
Thickness (Metric)
3.18
Inscribed Circle (Metric)
7.65
Inscribed Circle Diameter
0.30 Inch
Style
SCMT
Application
Drilling
Chip Breaker Type
GM-I
Thickness (Fractional)
1/8
Shape
90 Degree Square
Insert Holding Method
Screw
Size
070310
Old Material Number
8858450
ANSI Part Number
SCMT070310GMIPR1535
ISO Part Number
SCMT070310-GM-I
Rake
Positive
Number of Cutting Edges
4
Insert Included Angle
90 degrees
Corner Radius (Decimal)
0.04
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/DRV_Magic_Drill.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/Automotive_Tooling_Solutions.pdf
