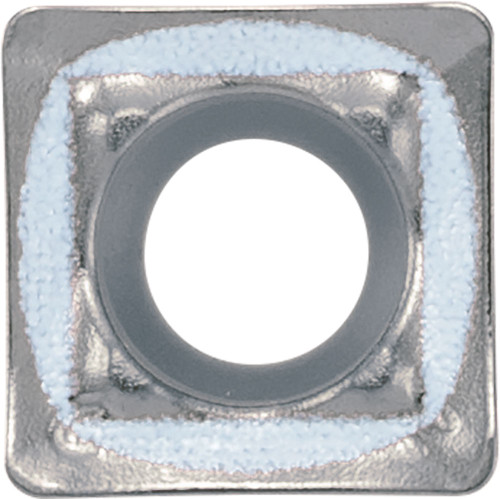

Kyocera SCMT 090405GME PR1225 Grade PVD Carbide, Indexable Drilling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TKB05690
$30.68
Kyocera SCMT 090405GME PR1225 Grade PVD Carbide, Right-Hand Drilling Insert for (M) Stainless Steel, (P) Carbon/Alloy Steel, (P) Tool Steel, (K) Cast Iron (DRV Magic Drill)

Specifications

Series
DRV
Unit of Measure
Imperial
Cutting Direction
Right
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(P) Carbon/Alloy Steel
Type
Magic Drill
Corner Radius (Metric)
0.50
Corner Radius
0.02 Inch
Grade
PR1225
Thickness (Metric)
4.10
Inscribed Circle (Metric)
9.10
Thickness
0.16 Inch
Inscribed Circle Diameter
0.36 Inch
Style
SCMT
Application
Drilling
Chip Breaker Type
GM-E
Thickness (Decimal)
0.16
Shape
90 Degree Square
Insert Holding Method
Screw
Size
090405
Old Material Number
8858458
ANSI Part Number
SCMT090405GMEPR1225
ISO Part Number
SCMT090405-GM-E
Rake
Positive
Number of Cutting Edges
4
Insert Included Angle
90 degrees
Corner Radius (Decimal)
0.02
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/DRV_Magic_Drill.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/Automotive_Tooling_Solutions.pdf
