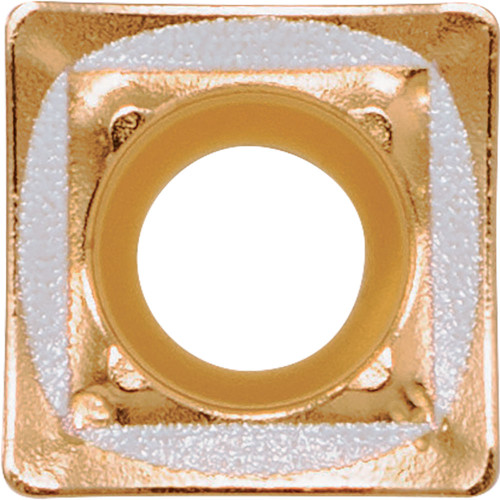

Kyocera SCMT 140508GHE CA415D Grade CVD Carbide, Indexable Drilling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TMG40001
$33.56
Kyocera SCMT 140508GHE CA415D Grade CVD Carbide, Neutral Drilling Insert for (K) Cast Iron (DRV Magic Drill)

Specifications

Series
DRV
Unit of Measure
Imperial
Cutting Direction
Neutral
Material
Carbide
Coating/Finish
CVD
Primary Workpiece Material
(P) Tool Steel|(K) Cast Iron
Type
Magic Drill
Corner Radius (Metric)
0.79
Corner Radius
0.03 Inch
Grade
CA415D
Thickness (Metric)
5
Inscribed Circle (Metric)
13.80
Thickness
0.20 Inch
Inscribed Circle Diameter
0.54 Inch
Style
SCMT
Application
Drilling
Chip Breaker Type
GH-E
Thickness (Decimal)
0.20
Shape
90 Degree Square
Insert Holding Method
Screw
Insert Length (Decimal)
0.54
Insert Length (Metric)
13.80
Size
140508
Old Material Number
8866512
ANSI Part Number
SCMT140508GHECA415D
ISO Part Number
SCMT140508-GH-E
Rake
Positive
Number of Cutting Edges
4
Insert Included Angle
90 degrees
Corner Radius (Decimal)
0.03
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/DRV_Magic_Drill.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/Automotive_Tooling_Solutions.pdf
Kyocera SCMT 140508GHE CA415D Grade CVD Carbide, Indexable Drilling Insert
$33.56
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
