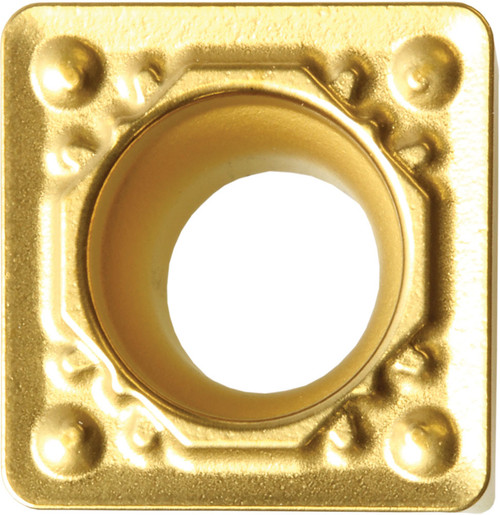

Kyocera SCMT 3251HQ CA530 Grade CVD Carbide, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TAD05000
$23.93
Kyocera SCMT 3251HQ CA530 Grade CVD Carbide, 7 Degree, Square, Positive Rake Angle, Neutral Turning Insert for Heavy Interruption and Finishing-Medium in (P) Carbon/Alloy Steel

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
Carbide
Coating/Finish
CVD
Primary Workpiece Material
(P) Carbon/Alloy Steel
Corner Radius
1/64 Inch
Included Angle
90 degrees
Thickness
5/32 Inch
Style
SCMT
Application
Boring, Chamfering, External Turning, Facing
Shape
90 Degree Square
Insert Holding Method
Screw or Clamp
Size
3251
Old Material Number
8840245
ANSI Part Number
SCMT3251HQCA530
ISO Part Number
SCMT09T304HQ
Rake
Positive
Material Group / Grade
CA530
Corner Radius (Metric)
0.40
Number of Cutting Edges
4
Thickness (Metric)
3.97
Chipbreaker
HQ
Cutting Range
Finishing-Medium
Usage Classification
Heavy Interruption
Insert Included Angle
90 degrees
Inscribed Circle (Metric)
9.53
Inscribed Circle
3/8 Inch
Pack quantity
10
