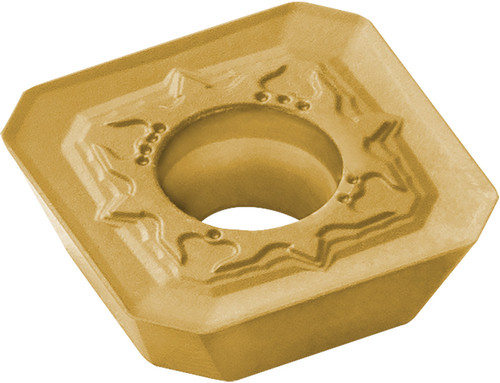

Kyocera SEET 13T3AGSNSL CA6535 Grade CVD Carbide, Indexable Milling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TMA40005
$30.44
Kyocera SEET 13T3AGSNSL CA6535 Grade CVD Carbide, Square, Positive Rake Angle Right-Hand Milling Insert for Finishing (K) Cast Iron, (P) Steel, and (M) Stainless Steel Materials

Specifications

Series
MFSE
Unit of Measure
Metric
Cutting Direction
Neutral
Material
Carbide
Coating/Finish
CVD
Primary Workpiece Material
(K) Nodular Cast Iron
Corner Radius
1.50 mm
Grade
CA6535
Inscribed Circle (Metric)
13.40
Thickness
3.97 mm
Style
SEET
Application
Chamfering, Facing
Thickness (Fractional)
5/32
Shape
90 Degree Square
Insert Holding Method
Screw
Old Material Number
8867064
ANSI Part Number
SEET13T3AGSNSLCA6535
ISO Part Number
SEET13T3AGSN-SL
Rake
Positive
Number of Cutting Edges
4
Insert Size
13T3
Chipbreaker
AGSN-SL
Cutting Range
Roughing
Corner Radius (Decimal)
0.06
Insert Included Angle (Degree)
90 degrees
Inscribed Circle (Decimal)
0.53
Pack quantity
10
