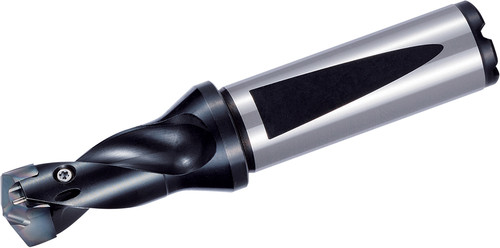

Kyocera SF0625DRA115M15, DRA Magic Drill 0.4528-0.4720" Cutting Diameter, 1.5xD, Replaceable Tip Drill

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-THD11593
$422.99
Kyocera SF0625DRA115M15, DRA Magic Drill 0.4528-0.4720" Cutting Diameter, 0.6250" Diameter Flange Shank, Coolant-Through Replaceable Tip Drill

Specifications

Series
DRA
Unit of Measure
Imperial
Shank Type
Flange Shank
Cutting Direction
Right
Material
Steel
Weldon Flat
No
Max. Cutting Diameter
0.47 Inch
Number of Flutes
2
Shank Diameter
0.63 Inch
Grade
GR99
Application
Drilling
Insert Holding Method
Screw
Coolant Through
Yes
Old Material Number
8607256
ANSI Part Number
SF0625DRA115M15
ISO Part Number
SF0625-DRA115M-1.5
Tool Style
SF…DRA
Usable Length (Decimal)
0.71
Usable Length (Metric)
18.01
Contact Surface Diameter Machine Side (Decimal)
0.79
Min. Cutting Diameter
0.45 Inch
Depth x Diameter Ratio
1.5 x D
Cutting Diameter (Decimal)
0.45 - 0.47
Cutting Diameter (Metric)
11.50 - 11.99
Cutting Diameter Minimum (Metric)
11.50
Cutting Diameter Maximum (Metric)
11.99
Connection Diameter (Metric)
15.88
Contact Surface Diameter Machine Side (Metric)
19.99
Number of Inserts
1
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/DRA_Magic_Drills_W.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Automotive_Tooling_Solutions.pdf
