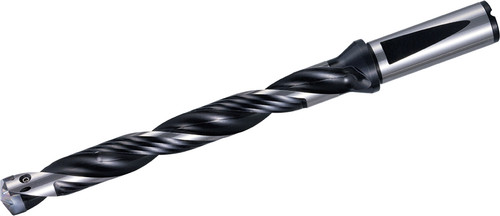

Kyocera Replaceable Tip Drill SF0625DRA145M8, manufacturer part number THD11296.
Specifications: Cutting Diameter: 0.5709 - 0.5902 in (14.50 - 14.99 mm); Overall Length: 7.4410 in (189.00 mm); Number of Flutes: 2; Shank Type: Flange Shank; Insert Holding Method: Screw; Old Material Number: 8609032; Usable Length: 4.7240 in (119.99 mm); Contact Surface Diameter Machine Side: 0.7870 in (19.99 mm); Cutting Diameter Minimum: 0.5709 in (14.50 mm); Cutting Diameter Maximum: 0.5902 in (14.99 mm); Connection Diameter: 0.6252 in (15.88 mm); Number of Inserts: 1; Coolant Option: Internal Coolant; Hand Direction: Right; Insert Style: SF…DRA; ANSI Designation: SF0625DRA145M8; ISO Designation: SF0625-DRA145M-8; Machining Operations: Drilling; LxD Ratio: 8xD.
Material: Steel. Series: DRA. Unit of measure: Inch.
