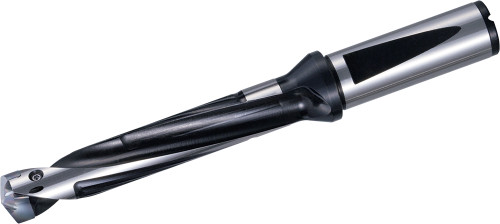

Kyocera Replaceable Tip Drill SF0750DRA170M5, manufacturer part number THD11252.
Specifications: Cutting Diameter: 0.6693 - 0.7083 in (17.00 - 17.99 mm); Overall Length: 6.5350 in (165.99 mm); Number of Flutes: 2; Shank Type: Flange Shank; Insert Holding Method: Screw; Old Material Number: 8608244; Usable Length: 3.5429 in (89.99 mm); Contact Surface Diameter Machine Side: 0.9839 in (24.99 mm); Cutting Diameter Minimum: 0.6693 in (17.00 mm); Cutting Diameter Maximum: 0.7083 in (17.99 mm); Connection Diameter: 0.7500 in (19.05 mm); Number of Inserts: 1; Coolant Option: Internal Coolant; Hand Direction: Right; Insert Style: SF…DRA; ANSI Designation: SF0750DRA170M5; ISO Designation: SF0750-DRA170M-5; Machining Operations: Drilling; LxD Ratio: 5xD.
Material: Steel. Series: DRA. Unit of measure: Inch.
