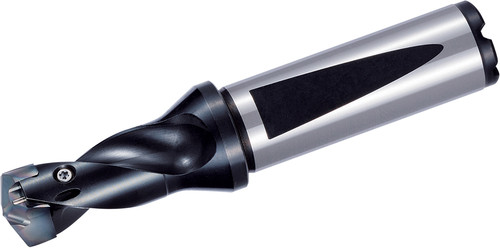

Kyocera Replaceable Tip Drill SF1000DRA210M15: .8268-.8658" Cut Dia, 1.5xD, 1" Shank, THD11606

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-THD11606
$600.56

Kyocera DRA replaceable tip drill, 2 flutes, flange shank, internal coolant. Steel body. Manufacturer part number THD11606.

Specifications

Series
DRA
Unit of Measure
Inch
Shank Type
Flange Shank
Hand Direction
Right
Material
Steel
Overall Length (Decimal)
4.7240
Cutting Diameter Maximum (Decimal)
0.8658
Number of Flutes
2
Connection Diameter (Decimal)
1.0000
Size System
Decimal
ANSI Designation
SF1000DRA210M15
Insert Holding Method
Screw
Coolant Option
Internal Coolant
ISO Designation
SF1000-DRA210M-1.5
Machining Operations
Drilling
Insert Style
SF…DRA
Usable Length (Decimal)
1.2721
Usable Length (Metric)
32.31
Contact Surface Diameter Machine Side (Decimal)
1.2598
Cutting Diameter Minimum (Decimal)
0.8268
Overall Length (Metric)
119.99
Cutting Diameter (Decimal)
0.8268 - 0.8658
Cutting Diameter (Metric)
21.00 - 21.99
Cutting Diameter Minimum (Metric)
21.00
Cutting Diameter Maximum (Metric)
21.99
Connection Diameter (Metric)
25.40
Contact Surface Diameter Machine Side (Metric)
32.00
Number of Inserts
1
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/DRA_Magic_Drills_W.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Automotive_Tooling_Solutions.pdf
LxD Ratio
1.5xD
