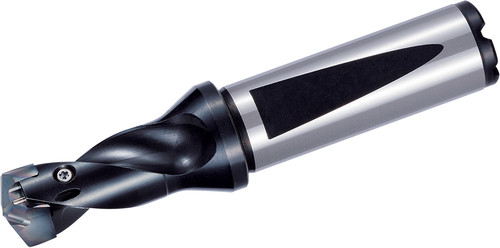

Kyocera SF1000DRA250M15, DRA Magic Drill 0.9843-1.0039" Cutting Diameter, 1.5xD, Replaceable Tip Drill

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-THD11610
$749.09
Kyocera SF1000DRA250M15, DRA Magic Drill 0.9843-1.0039" Cutting Diameter, 1.0000" Diameter Flange Shank, Coolant-Through Replaceable Tip Drill

Specifications

Series
DRA
Unit of Measure
Imperial
Shank Type
Flange Shank
Cutting Direction
Right
Material
Steel
Weldon Flat
No
Max. Cutting Diameter
1 Inch
Number of Flutes
2
Shank Diameter
1 Inch
Grade
GR99
Application
Drilling
Insert Holding Method
Screw
Coolant Through
Yes
Old Material Number
8607273
ANSI Part Number
SF1000DRA250M15
ISO Part Number
SF1000-DRA250M-1.5
Tool Style
SF…DRA
Usable Length (Decimal)
1.51
Usable Length (Metric)
38.30
Contact Surface Diameter Machine Side (Decimal)
1.26
Min. Cutting Diameter
0.98 Inch
Depth x Diameter Ratio
1.5 x D
Cutting Diameter (Decimal)
0.98 - 1
Cutting Diameter (Metric)
25 - 25.50
Cutting Diameter Minimum (Metric)
25
Cutting Diameter Maximum (Metric)
25.50
Connection Diameter (Metric)
25.40
Contact Surface Diameter Machine Side (Metric)
32
Number of Inserts
1
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/DRA_Magic_Drills_W.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Automotive_Tooling_Solutions.pdf
Kyocera SF1000DRA250M15, DRA Magic Drill 0.9843-1.0039" Cutting Diameter, 1.5xD, Replaceable Tip Drill
$749.09
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
