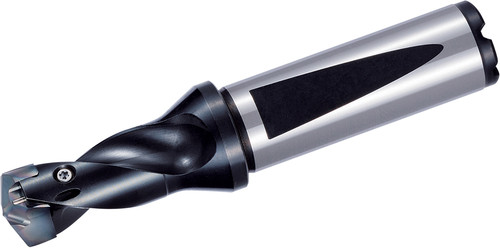

Kyocera Replaceable Tip Drill SF12DRA080M15: 7.94-8.49mm Cut Dia, 1.5xD, 12.00mm Shank, THD11515

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-THD11515
$389.96

Kyocera DRA replaceable tip drill, 2 flutes, flange shank, internal coolant. Steel body. Manufacturer part number THD11515.

Specifications

Series
DRA
Unit of Measure
Metric
Shank Type
Flange Shank
Hand Direction
Right
Material
Steel
Overall Length (Decimal)
2.8032
Cutting Diameter Maximum (Metric)
8.49
Number of Flutes
2
Connection Diameter (Metric)
12.00
Size System
Metric
ANSI Designation
SF12DRA080M15
Insert Holding Method
Screw
Coolant Option
Internal Coolant
ISO Designation
SF12-DRA080M-1.5
Machining Operations
Drilling
Connection Diameter (Decimal)
0.4724
Insert Style
SF…DRA
Usable Length (Decimal)
0.5039
Usable Length (Metric)
12.80
Contact Surface Diameter Machine Side (Decimal)
0.6299
Cutting Diameter Minimum (Metric)
7.94
Overall Length (Metric)
71.20
Cutting Diameter (Decimal)
0.3125 - 0.3343
Cutting Diameter (Metric)
7.94 - 8.49
Cutting Diameter Minimum (Decimal)
0.3126
Cutting Diameter Maximum (Decimal)
0.3343
Contact Surface Diameter Machine Side (Metric)
16.00
Number of Inserts
1
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/DRA_Magic_Drills_W.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Automotive_Tooling_Solutions.pdf
LxD Ratio
1.5xD
