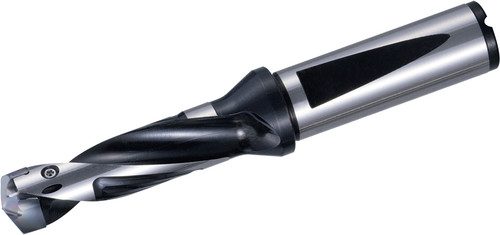

Kyocera Replaceable Tip Drill SF16DRA110M3: 11.00-11.49mm Cut Dia, 3xD, 16.00mm Shank, THD08610

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-THD08610
$498.56

Kyocera DRA replaceable tip drill, 2 flutes, flange shank, internal coolant. Steel body. Manufacturer part number THD08610.

Specifications

Series
DRA
Unit of Measure
Metric
Shank Type
Flange Shank
Hand Direction
Right
Material
Steel
Overall Length (Decimal)
3.9370
Cutting Diameter Maximum (Metric)
11.49
Number of Flutes
2
Connection Diameter (Metric)
16.00
Size System
Metric
ANSI Designation
SF16DRA110M3
Insert Holding Method
Screw
Coolant Option
Internal Coolant
ISO Designation
SF16-DRA110M-3
Machining Operations
Drilling
Connection Diameter (Decimal)
0.6299
Insert Style
SF…DRA
Usable Length (Decimal)
1.3583
Usable Length (Metric)
34.50
Contact Surface Diameter Machine Side (Decimal)
0.7874
Cutting Diameter Minimum (Metric)
11.00
Overall Length (Metric)
100.00
Cutting Diameter (Decimal)
0.4331 - 0.4524
Cutting Diameter (Metric)
11.00 - 11.49
Cutting Diameter Minimum (Decimal)
0.4331
Cutting Diameter Maximum (Decimal)
0.4524
Contact Surface Diameter Machine Side (Metric)
20.00
Number of Inserts
1
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/DRA_Magic_Drills_W.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Automotive_Tooling_Solutions.pdf
LxD Ratio
3xD
