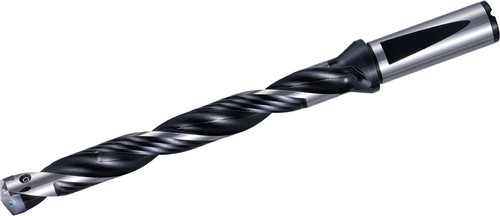

Kyocera Replaceable Tip Drill SF16DRA115M8: 11.50-11.99mm Cut Dia, 8xD, 16.00mm Shank, THD08617

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-THD08617
$718.78

Kyocera DRA replaceable tip drill, 2 flutes, flange shank, internal coolant. Steel body. Manufacturer part number THD08617.

Specifications

Series
DRA
Unit of Measure
Metric
Shank Type
Flange Shank
Hand Direction
Right
Material
Steel
Overall Length (Decimal)
6.3780
Cutting Diameter Maximum (Metric)
11.99
Number of Flutes
2
Connection Diameter (Metric)
16.00
Size System
Metric
ANSI Designation
SF16DRA115M8
Insert Holding Method
Screw
Coolant Option
Internal Coolant
ISO Designation
SF16-DRA115M-8
Machining Operations
Drilling
Connection Diameter (Decimal)
0.6299
Insert Style
SF…DRA
Usable Length (Decimal)
3.7795
Usable Length (Metric)
96.00
Contact Surface Diameter Machine Side (Decimal)
0.7874
Cutting Diameter Minimum (Metric)
11.50
Overall Length (Metric)
162.00
Cutting Diameter (Decimal)
0.4528 - 0.4721
Cutting Diameter (Metric)
11.50 - 11.99
Cutting Diameter Minimum (Decimal)
0.4528
Cutting Diameter Maximum (Decimal)
0.4721
Contact Surface Diameter Machine Side (Metric)
20.00
Number of Inserts
1
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/DRA_Magic_Drills_W.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Automotive_Tooling_Solutions.pdf
LxD Ratio
8xD
