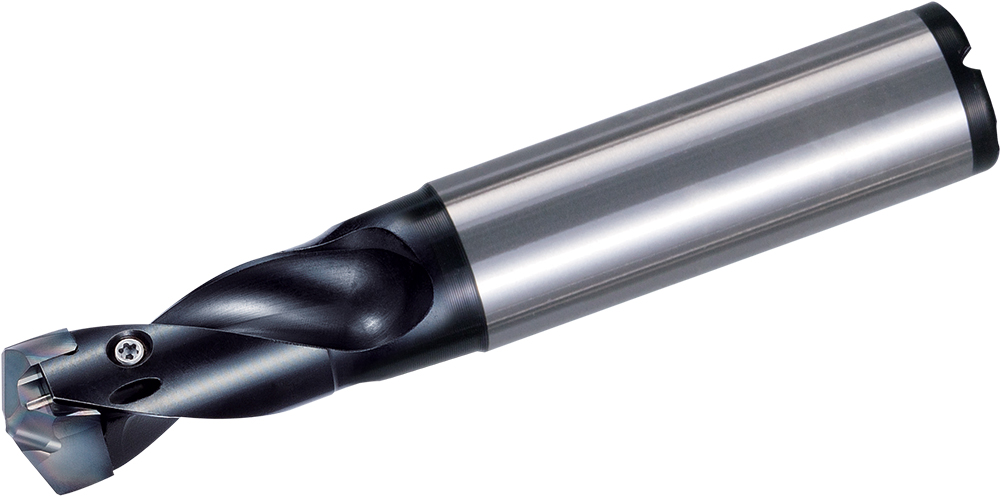

Kyocera SF16DRA130M15, DRA Magic Drill 13.00-13.49mm Cutting Diameter, 1.5xD, Replaceable Tip Drill

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-THD11525
$423.80
Kyocera SF16DRA130M15, DRA Magic Drill 13.00-13.49mm Cutting Diameter, 16.00mm Diameter Flange Shank, Coolant-Through Replaceable Tip Drill

Specifications

Series
DRA
Unit of Measure
Metric
Shank Type
Flange Shank
Cutting Direction
Right
Material
Steel
Weldon Flat
No
Max. Cutting Diameter
13.49 mm
Number of Flutes
2
Shank Diameter
16 mm
Grade
GR99
Application
Drilling
Insert Holding Method
Screw
Coolant Through
Yes
Old Material Number
8608337
ANSI Part Number
SF16DRA130M15
ISO Part Number
SF16-DRA130M-1.5
Connection Diameter (Decimal)
0.63
Tool Style
SF…DRA
Usable Length (Decimal)
0.80
Usable Length (Metric)
20.30
Contact Surface Diameter Machine Side (Decimal)
0.79
Min. Cutting Diameter
13 mm
Depth x Diameter Ratio
1.5 x D
Cutting Diameter (Decimal)
0.51 - 0.53
Cutting Diameter (Metric)
13 - 13.49
Cutting Diameter Minimum (Decimal)
0.51
Cutting Diameter Maximum (Decimal)
0.53
Contact Surface Diameter Machine Side (Metric)
20
Number of Inserts
1
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/DRA_Magic_Drills_W.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Automotive_Tooling_Solutions.pdf
