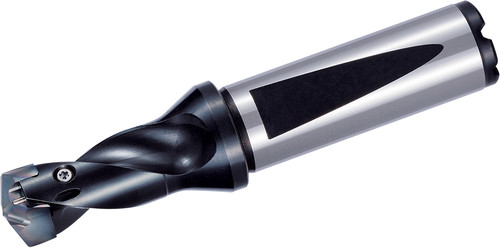

Kyocera Replaceable Tip Drill SF16DRA135M15, manufacturer part number THD11526.
Specifications: Cutting Diameter: 13.50 - 13.99 mm (0.5315 - 0.5508 in); Overall Length: 89.00 mm (3.5039 in); Number of Flutes: 2; Shank Type: Flange Shank; Insert Holding Method: Screw; Old Material Number: 8608324; Connection Diameter: 16.00 mm (0.6299 in); Usable Length: 21.00 mm (0.8268 in); Contact Surface Diameter Machine Side: 20.00 mm (0.7874 in); Cutting Diameter Minimum: 13.50 mm (0.5315 in); Cutting Diameter Maximum: 13.99 mm (0.5508 in); Number of Inserts: 1; Coolant Option: Internal Coolant; Hand Direction: Right; Insert Style: SF…DRA; ANSI Designation: SF16DRA135M15; ISO Designation: SF16-DRA135M-1.5; Machining Operations: Drilling; LxD Ratio: 1.5xD.
Material: Steel. Series: DRA. Unit of measure: Metric.
