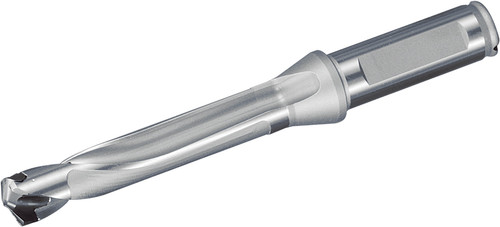

Kyocera SF20DRC150M3, DRC Magic Drill 15.00-15.99mm Cutting Diameter, 3xD, Replaceable Tip Drill

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-THD07328
$785.70
Kyocera SF20DRC150M3, DRC Magic Drill 15.00-15.99mm Cutting Diameter, 20.00mm Diameter Flange Shank, Coolant-Through Replaceable Tip Drill

Specifications

Series
DRC
Unit of Measure
Metric
Shank Type
Flange Shank
Cutting Direction
Right
Material
Steel
Weldon Flat
No
Max. Cutting Diameter
15.99 mm
Number of Flutes
2
Shank Diameter
20 mm
Grade
GR99
Application
Drilling
Insert Holding Method
Screw
Coolant Through
Yes
Old Material Number
8831120
ANSI Part Number
SF20DRC150M3
ISO Part Number
SF20-DRC150M-3
Connection Diameter (Decimal)
0.79
Tool Style
SF…DRC
Usable Length (Decimal)
1.89
Usable Length (Metric)
48
Contact Surface Diameter Machine Side (Decimal)
0.98
Min. Cutting Diameter
15 mm
Depth x Diameter Ratio
3 x D
Cutting Diameter (Decimal)
0.59 - 0.63
Cutting Diameter (Metric)
15 - 15.99
Cutting Diameter Minimum (Decimal)
0.59
Cutting Diameter Maximum (Decimal)
0.63
Contact Surface Diameter Machine Side (Metric)
25
Number of Inserts
1
