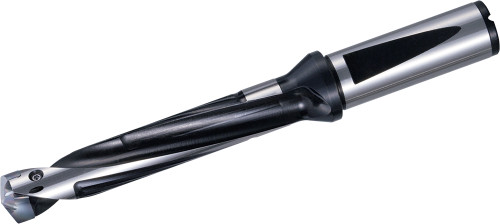

Kyocera Replaceable Tip Drill SF32DRA290M5: 29.00-29.99mm Cut Dia, 5xD, 32.00mm Shank, THD12059

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-THD12059
$1,080.43

Kyocera DRA replaceable tip drill, 2 flutes, flange shank, internal coolant. Steel body. Manufacturer part number THD12059.

Specifications

Series
DRA
Unit of Measure
Metric
Shank Type
Flange Shank
Hand Direction
Right
Material
Steel
Overall Length (Decimal)
9.8032
Cutting Diameter Maximum (Metric)
29.99
Number of Flutes
2
Connection Diameter (Metric)
32.00
Size System
Metric
ANSI Designation
SF32DRA290M5
Insert Holding Method
Screw
Coolant Option
Internal Coolant
ISO Designation
SF32-DRA290M-5
Machining Operations
Drilling
Connection Diameter (Decimal)
1.2598
Insert Style
SS…DRA
Usable Length (Decimal)
5.9055
Usable Length (Metric)
150.00
Contact Surface Diameter Machine Side (Decimal)
1.5354
Cutting Diameter Minimum (Metric)
29.00
Overall Length (Metric)
249.00
Cutting Diameter (Decimal)
1.1417 - 1.1807
Cutting Diameter (Metric)
29.00 - 29.99
Cutting Diameter Minimum (Decimal)
1.1417
Cutting Diameter Maximum (Decimal)
1.1807
Contact Surface Diameter Machine Side (Metric)
39.00
Number of Inserts
1
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/DRA_Magic_Drills_W.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Automotive_Tooling_Solutions.pdf
LxD Ratio
5xD
