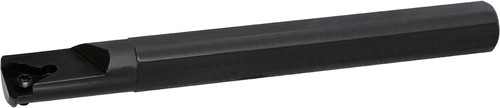

Kyocera SINR 2016S16, Indexable Internal Threading Toolholder

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-THC04080
$281.99
Kyocera SINR 2016S16, Right-Hand, Indexable Internal Threading Toolholder with a 20.00mm Minimum Bore Diameter for Internal Threading Applications

Specifications

Series
LDT
Unit of Measure
Metric
Cutting Direction
Right
Material
Steel
Application
Internal Threading
Insert Holding Method
Screw
Coolant Through
No
Thread Type
Internal
Old Material Number
8806839
ANSI Part Number
SINR2016S16
ISO Part Number
SINR2016S-16
Shank Height
14 mm
Shank Height (Decimal)
0.55
Material Group / Grade
GR99
Connection Diameter (Decimal)
0.63
Tool Style
SIN
Minimum Bore Diameter (Decimal)
0.79
Connection Diameter (Metric)
16
Minimum Bore Diameter (Metric)
20
Max. Bore Diameter
20 mm
Kyocera SINR 2016S16, Indexable Internal Threading Toolholder
$281.99
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
