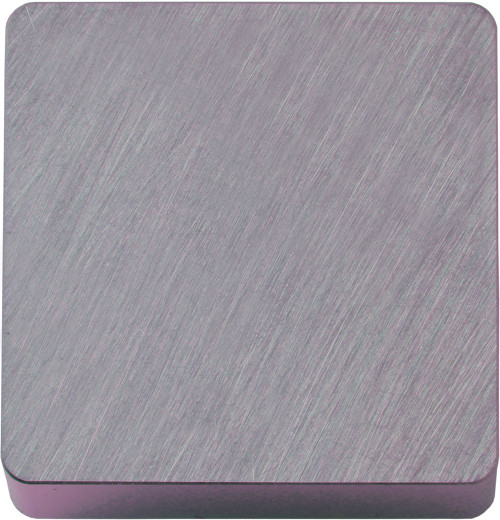

Kyocera SNG 434T00825 PT600M Grade Ceramic, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TCV05237
$21.99
Kyocera SNG 434T00825 PT600M Grade Ceramic, 0 Degree, Square, Negative Rake Angle, Neutral Turning Insert for Continuous and Finishing-Medium in (H) Hardened Materials and (K) Gray Cast Iron

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
Ceramic
Coating/Finish
PVD
Primary Workpiece Material
(H) Hardened Materials
Corner Radius
1/16 Inch
Included Angle
90 degrees
Thickness
3/16 Inch
Style
SNG
Application
Boring, Chamfering, External Turning, Facing
Shape
90 Degree Square
Insert Holding Method
Clamp
Size
434
Old Material Number
8828014
ANSI Part Number
SNG434T00825PT600M
ISO Part Number
SNGN120416T02025
Rake
Negative
Material Group / Grade
PT600M
Corner Radius (Metric)
1.60
Number of Cutting Edges
8
Thickness (Metric)
4.76
Cutting Range
Finishing-Medium
Usage Classification
Continuous
Insert Included Angle
90 degrees
Inscribed Circle (Metric)
12.70
Inscribed Circle
1/2 Inch
Pack quantity
10
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
