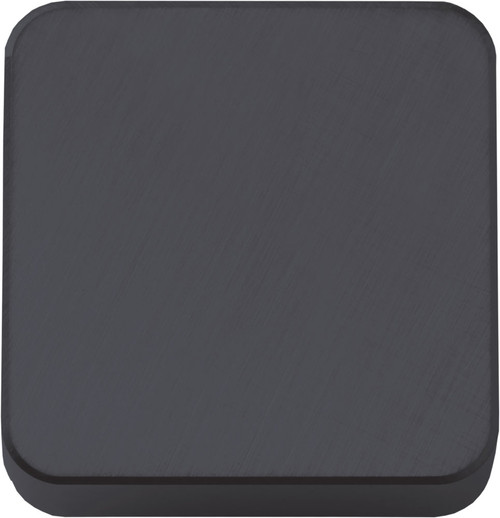

Kyocera SNG 435T00825 KS6015 Grade Ceramic, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TTB05242
$38.16
Kyocera SNG 435T00825 KS6015 Grade Ceramic, 0 Degree, Square, Negative Rake Angle, Neutral Turning Insert for Continuous and Finishing-Medium in (K) Gray Cast Iron

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Ceramic - Silicon Nitride
Coating/Finish
Uncoated
Insert Thickness (Fractional)
3/16
Corner Radius (Fractional)
5/64
Included Angle
90
ANSI Designation
SNG435T00825KS6015
Insert Style
SNG
Insert Thickness (Metric)
4.76
Insert Shape
Square
Insert Holding Method
Clamp
Insert Size
435
Old Material Number
8863029
Machining Operations
Boring, Chamfering, External Turning, Facing
Insert Grade
KS6015
Rake
Negative
IC Size (Metric)
12.70
Corner Radius (Metric)
2.00
Number of Cutting Edges
8
Workpiece Material
Cast Iron
Cutting Range
Finishing-Medium
Usage Classification
Continuous
IC Size (Fractional)
1/2
ISO Designation
SNGN120420T02025
Pack quantity
10
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/KS6015_KS6050_CS7050.pdf
