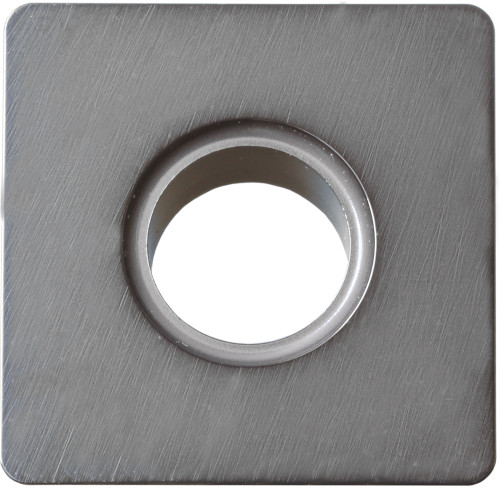

Kyocera SNGA 432 KW10 Grade Uncoated Carbide, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TWE00723
$38.12
Kyocera SNGA 432 KW10 Grade Uncoated Carbide, 0 Degree, Square, Negative Rake Angle, Neutral Turning Insert for Light Interruption and Roughing in (N) Non-Ferrous Metals, (S) Titanium Alloy and (K) Gray Cast Iron

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
Carbide
Coating/Finish
Uncoated
Primary Workpiece Material
(N) Non-Ferrous Materials|(S) Titanium Alloy
Corner Radius
1/32 Inch
Included Angle
90 degrees
Thickness
3/16 Inch
Style
SNGA
Application
Boring, Chamfering, External Turning, Facing
Shape
90 Degree Square
Insert Holding Method
Screw or Clamp
Size
432
Old Material Number
8805818
ANSI Part Number
SNGA432KW10
ISO Part Number
SNGA120408
Rake
Negative
Material Group / Grade
KW10
Corner Radius (Metric)
0.80
Number of Cutting Edges
8
Thickness (Metric)
4.76
Cutting Range
Roughing
Usage Classification
Light Interruption
Insert Included Angle
90 degrees
Inscribed Circle (Metric)
12.70
Inscribed Circle
1/2 Inch
Pack quantity
10
Kyocera SNGA 432 KW10 Grade Uncoated Carbide, Indexable Turning Insert
$38.12
