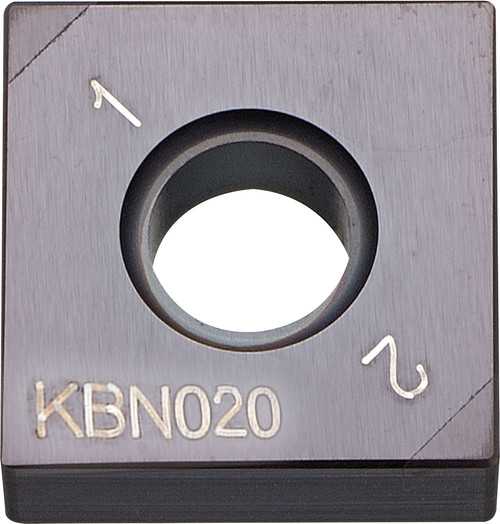

Kyocera SNGA 432S00525ME KBN020 Grade CBN, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TFC00032
$104.73
Kyocera SNGA 432S00525ME KBN020 Grade CBN, 90 Degree Diamond, Negative Rake Angle, Neutral Turning Insert for Continuous-Interrupted Machining of (H) Hardened Materials

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
CBN
Coating/Finish
PVD
Primary Workpiece Material
(H) Hardened Materials
Corner Radius
1/32 Inch
Included Angle
90 degrees
Thickness
3/16 Inch
Style
SNGA
Application
Boring, Chamfering, External Turning, Facing
Shape
90 Degree Square
Insert Holding Method
Screw or Clamp
Size
432
ANSI Part Number
SNGA432S00525MEKBN020
ISO Part Number
SNGA120408S01225ME
Rake
Negative
Material Group / Grade
KBN020
Corner Radius (Metric)
0.80
Number of Cutting Edges
2
Thickness (Metric)
4.76
Cutting Range
Finishing-Medium
Usage Classification
Light Interruption
Insert Included Angle
90 degrees
Inscribed Circle (Metric)
12.70
Inscribed Circle
1/2 Inch
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/KBN020_Coated_CBN_for_Hardened_Material.pdf
