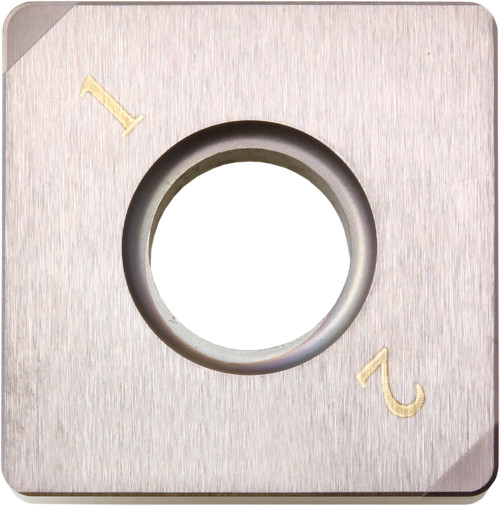

Kyocera SNGA 432S01630MEH KBN05M Grade CBN, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TBN03669
$99.73
Kyocera SNGA 432S01630MEH KBN05M Grade CBN, 0 Degree, Square, Negative Rake Angle, Neutral Turning Insert for Continuous and Finishing-Medium in (H) Hardened Materials

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
CBN
Coating/Finish
PVD
Primary Workpiece Material
(H) Hardened Materials
Corner Radius
1/32 Inch
Included Angle
90 degrees
Thickness
3/16 Inch
Style
SNGA
Application
Boring, Chamfering, External Turning, Facing
Shape
90 Degree Square
Insert Holding Method
Screw or Clamp
Size
432
Old Material Number
8835342
ANSI Part Number
SNGA432S01630MEHKBN05M
ISO Part Number
SNGA120408S04030MEH
Rake
Negative
Material Group / Grade
KBN05M
Corner Radius (Metric)
0.80
Number of Cutting Edges
2
Thickness (Metric)
4.76
Cutting Range
Finishing-Medium
Usage Classification
Continuous
Insert Included Angle
90 degrees
Inscribed Circle (Metric)
12.70
Inscribed Circle
1/2 Inch
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/KBN05M_W.pdf
Kyocera SNGA 432S01630MEH KBN05M Grade CBN, Indexable Turning Insert
$99.73
