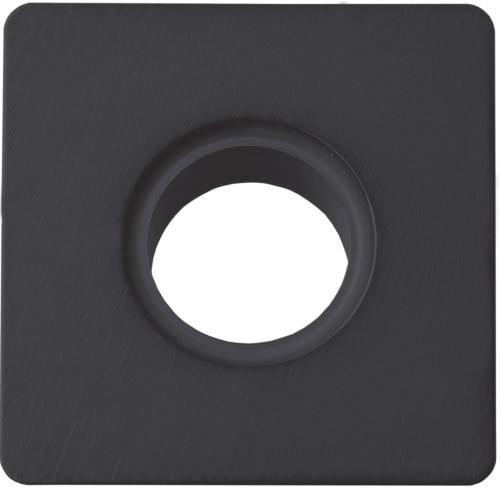

Kyocera SNGA 433T00825 KS6050 Grade Ceramic, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TCX05012
$38.16
Kyocera SNGA 433T00825 KS6050 Grade Ceramic, 0 Degree, Square, Negative Rake Angle, Neutral Turning Insert for Light Interruption and Medium-Roughing in (K) Gray Cast Iron

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
Ceramic
Coating/Finish
Uncoated
Primary Workpiece Material
(K) Gray Cast Iron
Corner Radius
3/64 Inch
Included Angle
90 degrees
Thickness
3/16 Inch
Style
SNGA
Application
Boring, Chamfering, External Turning, Facing
Shape
90 Degree Square
Insert Holding Method
Screw or Clamp
Size
433
Old Material Number
8834152
ANSI Part Number
SNGA433T00825KS6050
ISO Part Number
SNGA120412T02025
Rake
Negative
Material Group / Grade
KS6050
Corner Radius (Metric)
1.20
Number of Cutting Edges
8
Thickness (Metric)
4.76
Cutting Range
Medium-Roughing
Usage Classification
Light Interruption
Insert Included Angle
90 degrees
Inscribed Circle (Metric)
12.70
Inscribed Circle
1/2 Inch
Pack quantity
10
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Automotive_Tooling_Solutions.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/KS6015_KS6050_CS7050.pdf
