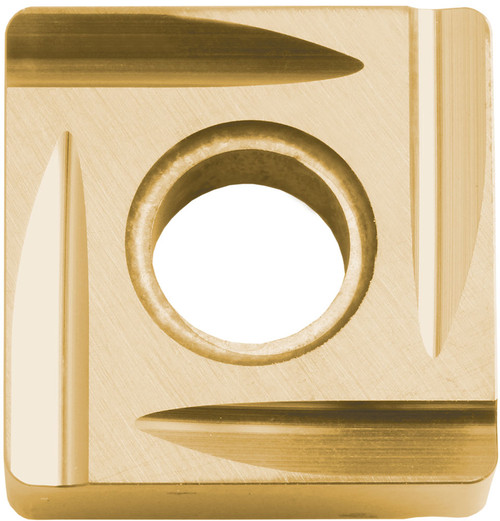

Kyocera Turning Insert SNGG322LB PV720: TLD05282

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLD05282
$29.00

Kyocera ISOI turning insert for steel, 3/8 in (9.525 mm) IC, square shape, negative rake, 8 cutting edges, finishing-medium cutting range, screw or clamp insert holding, left hand. Cermet, TiCN (PVD) coating. Manufacturer part number TLD05282.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Left
Material
Cermet
Coating/Finish
TiCN
Insert Thickness (Metric)
3.18
Corner Radius (Fractional)
1/32
Included Angle
90
ANSI Designation
SNGG322LBPV720
Insert Style
SNGG
Machining Operations
Boring, Chamfering, External Turning, Facing
Insert Shape
Square
Insert Holding Method
Screw or Clamp
Insert Size
322
Insert Grade
PV720
Workpiece Material
Steel
Rake
Negative
Insert Thickness (Fractional)
1/8
Corner Radius (Metric)
0.80
Number of Cutting Edges
8
Coating Process
PVD
IC Size (Fractional)
3/8
Cutting Range
Finishing-Medium
Usage Classification
Continuous to Light Interruption
IC Size (Metric)
9.525
Chip Breaker Type
B
ISO Designation
SNGG090308L-B
Pack quantity
10
