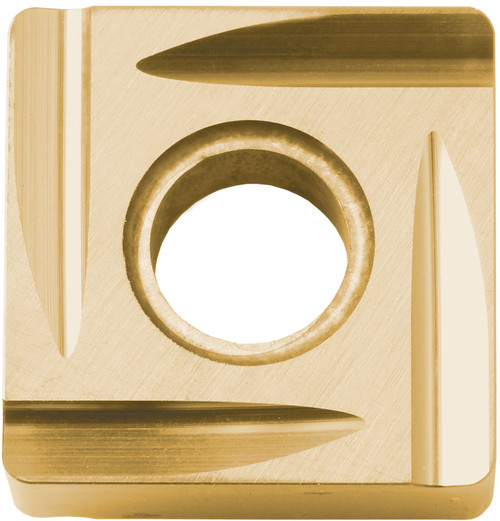

Kyocera Turning Insert SNGG322RB PV710: TLF05281

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLF05281
$27.59

Kyocera ISOI turning insert for steel, 3/8 in (9.525 mm) IC, square shape, negative rake, 8 cutting edges, finishing-medium cutting range, screw or clamp insert holding, right hand. Cermet, TiCN (PVD) coating. Manufacturer part number TLF05281.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Right
Material
Cermet
Coating/Finish
TiCN
Insert Thickness (Metric)
3.18
Corner Radius (Fractional)
1/32
Included Angle
90
ANSI Designation
SNGG322RBPV710
Insert Style
SNGG
Machining Operations
Boring, Chamfering, External Turning, Facing
Insert Shape
Square
Insert Holding Method
Screw or Clamp
Insert Size
322
Insert Grade
PV710
Workpiece Material
Steel
Rake
Negative
Insert Thickness (Fractional)
1/8
Corner Radius (Metric)
0.80
Number of Cutting Edges
8
Coating Process
PVD
IC Size (Fractional)
3/8
Cutting Range
Finishing-Medium
Usage Classification
Continuous
IC Size (Metric)
9.525
Chip Breaker Type
B
ISO Designation
SNGG090308R-B
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/Hybrid_Cermet.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
Kyocera Turning Insert SNGG322RB PV710: TLF05281
$27.59
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
