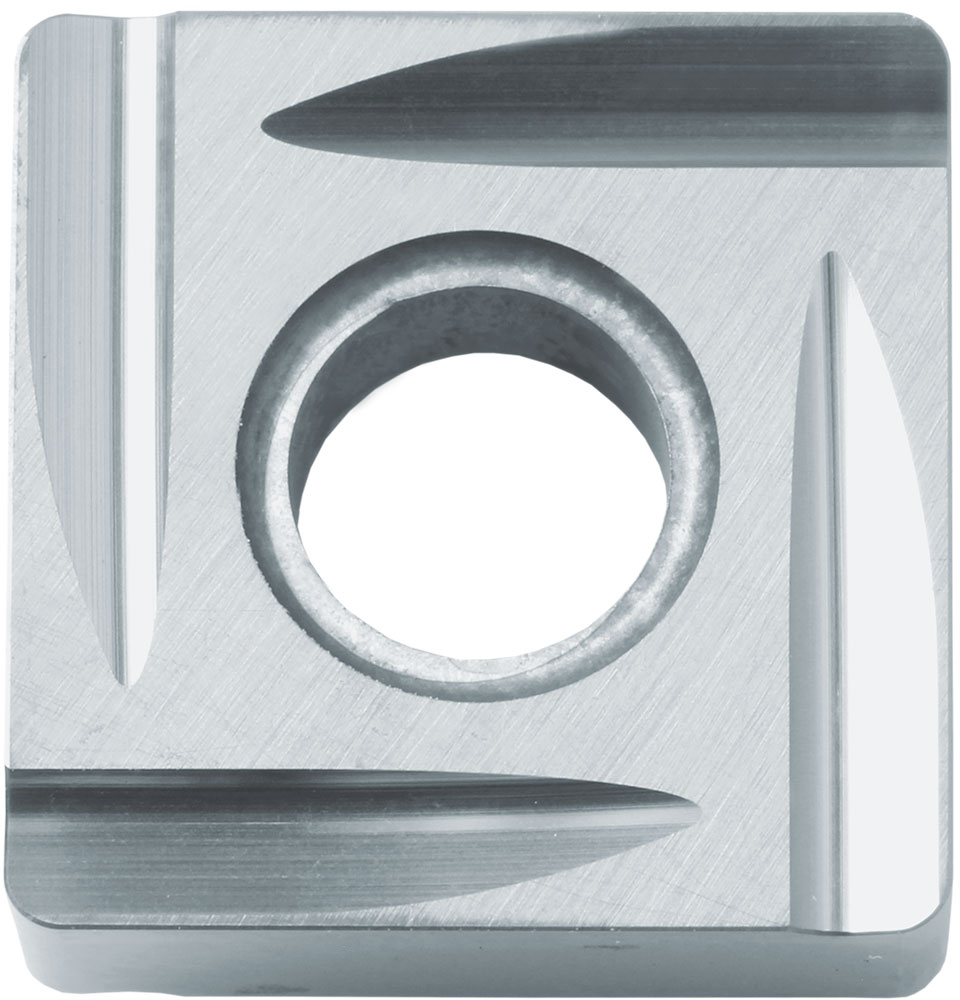

Kyocera Turning Insert SNGG432RC PV7005: TJA05289

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TJA05289
$41.05

Kyocera Turning Insert SNGG432RC PV7005, manufacturer part number TJA05289.

Specifications: IC Size: 1/2 in (12.70 mm); Insert Thickness: 3/16 in (4.76 mm); Corner Radius: 1/32 in (0.80 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8827508; Rake: Negative; Number of Cutting Edges: 8; Cutting Range: Medium-Roughing; Usage Classification: Continuous; Insert Size: 432; Hand Direction: Right; Insert Style: SNGG; ANSI Designation: SNGG432RCPV7005; Chip Breaker Type: C; ISO Designation: SNGG120408R-C; Included Angle: 90 degrees; Machining Operations: Boring, Chamfering, External Turning, Facing; Insert Grade: PV7005; Workpiece Material: Cast Iron; Insert Shape: Square; Coating Process: PVD.

Material: Cermet. Coating/Finish: TiC/TiN (MEGACOAT). Series: ISOI. Unit of measure: Inch.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Right
Material
Cermet
Coating/Finish
TiC/TiN (MEGACOAT)
Insert Thickness (Fractional)
3/16
Corner Radius (Fractional)
1/32
Included Angle
90
ANSI Designation
SNGG432RCPV7005
Insert Style
SNGG
Insert Thickness (Metric)
4.76
Insert Shape
Square
Insert Holding Method
Screw or Clamp
Insert Size
432
Old Material Number
8827508
Machining Operations
Boring, Chamfering, External Turning, Facing
Insert Grade
PV7005
Rake
Negative
IC Size (Metric)
12.70
Corner Radius (Metric)
0.80
Number of Cutting Edges
8
Workpiece Material
Cast Iron
ISO Designation
SNGG120408R-C
Cutting Range
Medium-Roughing
Usage Classification
Continuous
IC Size (Fractional)
1/2
Coating Process
PVD
Chip Breaker Type
C
Pack quantity
10
Kyocera Turning Insert SNGG432RC PV7005: TJA05289
$41.05
