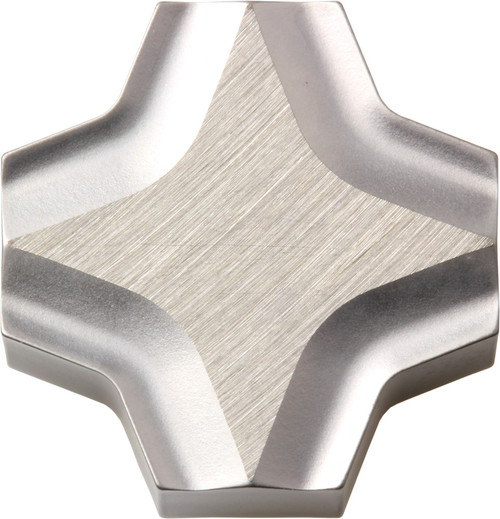

Kyocera SNMF 12042121 TN90 Grade Uncoated Cermet, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TSO01988
$23.47
Kyocera SNMF 12042121 TN90 Grade Uncoated Cermet, 0 Degree, Square, Negative Rake Angle, Neutral Turning Insert for Continuous and Finishing-Medium in (P) Carbon/Alloy Steel and (M) Stainless Steel

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
Cermet
Coating/Finish
Uncoated
Primary Workpiece Material
(P) Carbon/Alloy Steel
Included Angle
90 degrees
Thickness
3/16 Inch
Style
SNMF
Application
Bearing Machining, External Corner Filleting, Internal Corner Filleting
Shape
90 Degree Square
Insert Holding Method
Clamp
Size
12042121
Old Material Number
8804810
ANSI Part Number
SNMF12042121TN90
ISO Part Number
SNMF120421-21
Rake
Negative
Material Group / Grade
TN90
Corner Radius (Metric)
2.10
Number of Cutting Edges
8
Thickness (Metric)
4.76
Cutting Range
Finishing-Medium
Usage Classification
Continuous
Insert Included Angle
90 degrees
Inscribed Circle (Metric)
12.70
Inscribed Circle
1/2 Inch
Pack quantity
10
Kyocera SNMF 12042121 TN90 Grade Uncoated Cermet, Indexable Turning Insert
$23.47
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
