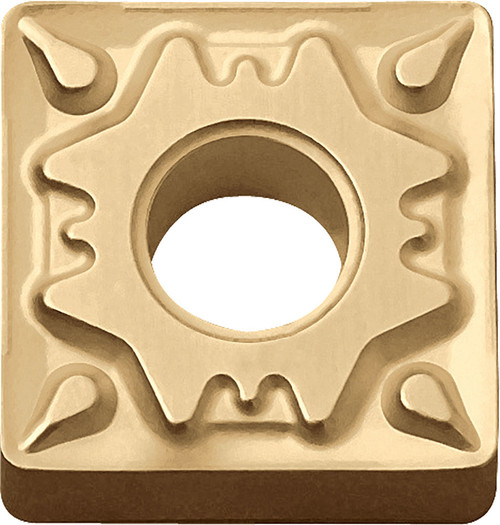

Kyocera SNMG 431HQ CA515 Grade CVD Carbide, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TAB05190
$18.77
Kyocera SNMG 431HQ CA515 Grade CVD Carbide, 0 Degree, Square, Negative Rake Angle, Neutral Turning Insert for Continuous and Finishing-Medium in (P) Carbon/Alloy Steel

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
Carbide
Coating/Finish
CVD
Primary Workpiece Material
(P) Carbon/Alloy Steel
Corner Radius
1/64 Inch
Included Angle
90 degrees
Thickness
3/16 Inch
Style
SNMG
Application
Boring, Chamfering, External Turning, Facing
Shape
90 Degree Square
Insert Holding Method
Screw or Clamp
Size
431
Old Material Number
8840668
ANSI Part Number
SNMG431HQCA515
ISO Part Number
SNMG120404HQ
Rake
Negative
Material Group / Grade
CA515
Corner Radius (Metric)
0.40
Number of Cutting Edges
8
Thickness (Metric)
4.76
Chipbreaker
HQ
Cutting Range
Finishing-Medium
Usage Classification
Continuous
Insert Included Angle
90 degrees
Inscribed Circle (Metric)
12.70
Inscribed Circle
1/2 Inch
Pack quantity
10
