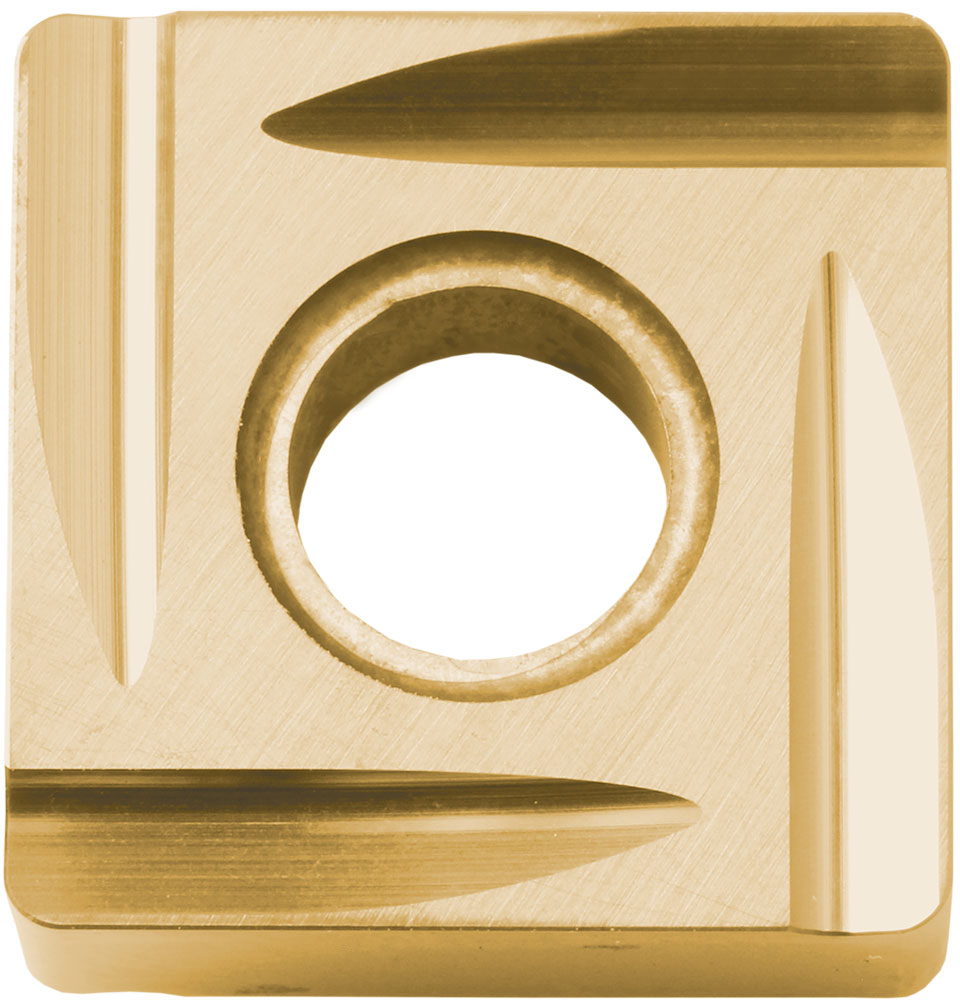

Kyocera Turning Insert SNMG431RC PV720: TLD05322

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLD05322
$19.49

Kyocera ISOI turning insert for steel, 1/2 in (12.70 mm) IC, square shape, negative rake, 8 cutting edges, roughing cutting range, screw or clamp insert holding, right hand. Cermet, TiCN (PVD) coating. Manufacturer part number TLD05322.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Right
Material
Cermet
Coating/Finish
TiCN
Insert Thickness (Fractional)
3/16
Corner Radius (Fractional)
1/64
Included Angle
90
ANSI Designation
SNMG431RCPV720
Insert Style
SNMG
Insert Thickness (Metric)
4.76
Insert Shape
Square
Insert Holding Method
Screw or Clamp
Insert Size
431
Machining Operations
Boring, Chamfering, External Turning, Facing
Insert Grade
PV720
Rake
Negative
IC Size (Metric)
12.70
Corner Radius (Metric)
0.40
Number of Cutting Edges
8
Workpiece Material
Steel
ISO Designation
SNMG120404R-C
Cutting Range
Roughing
Usage Classification
Continuous to Light Interruption
IC Size (Fractional)
1/2
Coating Process
PVD
Chip Breaker Type
C
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/Hybrid_Cermet.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
