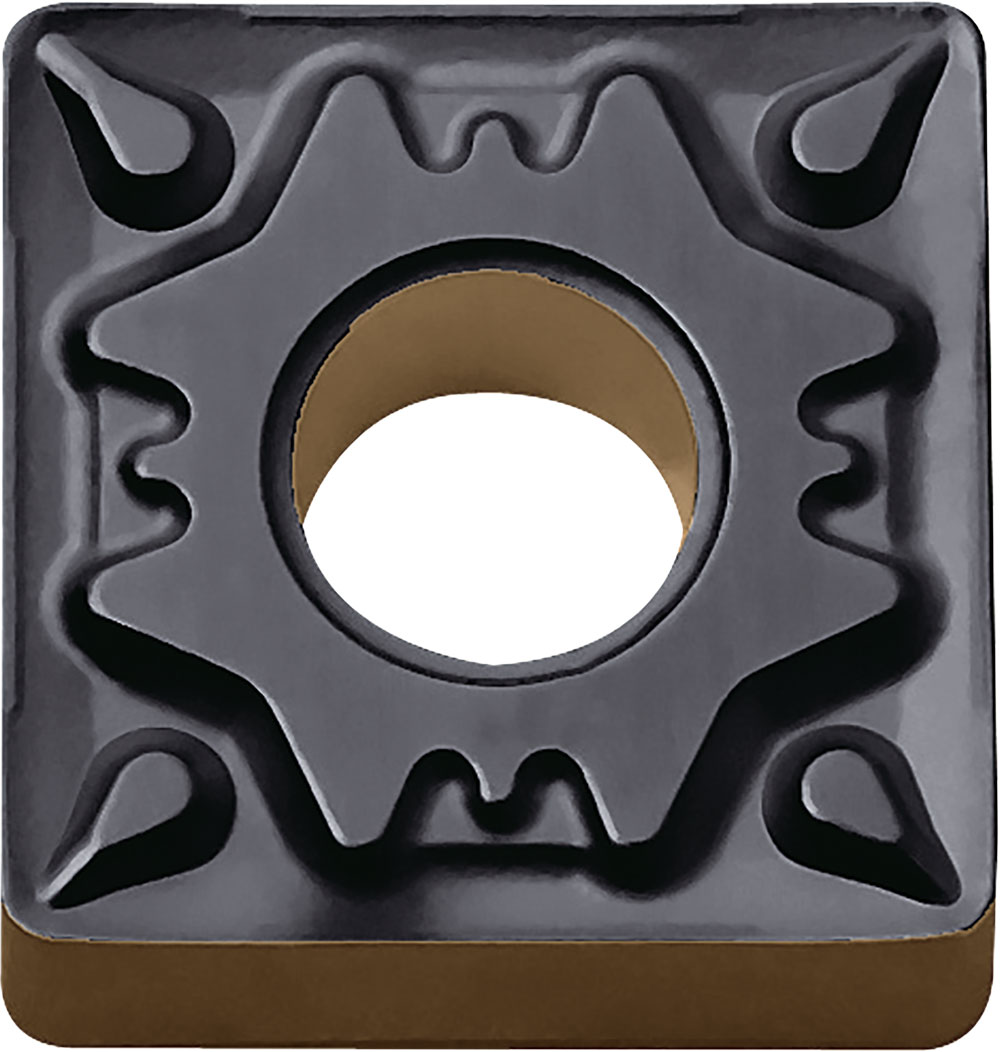

Kyocera SNMG 432HQ CA025P Grade CVD Carbide, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TMH00223
$18.77
Kyocera SNMG 432HQ CA025P Grade CVD Carbide, 90 Degree Square, Negative Rake Angle, Neutral Turning Insert for Light Interruption and Finishing-Medium in (P) Carbon/Alloy Steel

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
Carbide
Coating/Finish
CVD
Primary Workpiece Material
(P) Carbon/Alloy Steel
Corner Radius
1/32 Inch
Included Angle
90 degrees
Thickness
3/16 Inch
Style
SNMG
Application
Boring, Chamfering, External Turning, Facing
Shape
90 Degree Square
Insert Holding Method
Screw or Clamp
Size
432
Old Material Number
8860471
ANSI Part Number
SNMG432HQCA025P
ISO Part Number
SNMG120408HQ
Rake
Negative
Material Group / Grade
CA025P
Corner Radius (Metric)
0.80
Number of Cutting Edges
8
Thickness (Metric)
4.76
Chipbreaker
HQ
Cutting Range
Finishing-Medium
Usage Classification
Light Interruption
Insert Included Angle
90 degrees
Inscribed Circle (Metric)
12.70
Inscribed Circle
1/2 Inch
Pack quantity
10
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/CA025P_CVD_Coated_Carbide_for_Steel.pdf
