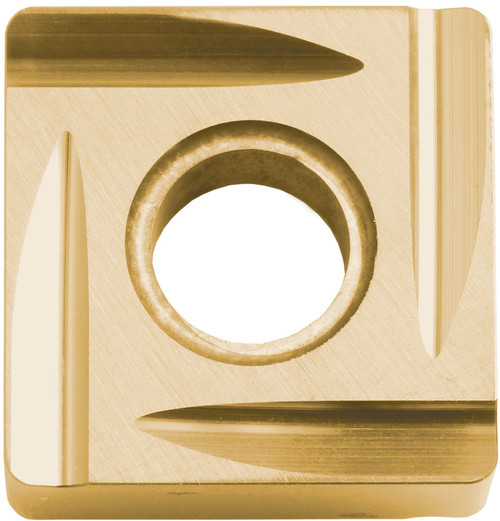

Kyocera Turning Insert SNMG432LC PV720: TLD05325

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLD05325
$19.49

Kyocera Turning Insert SNMG432LC PV720, manufacturer part number TLD05325.

Specifications: IC Size: 1/2 in (12.70 mm); Insert Thickness: 3/16 in (4.76 mm); Corner Radius: 1/32 in (0.80 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8862658; Rake: Negative; Number of Cutting Edges: 8; Cutting Range: Roughing; Usage Classification: Continuous to Light Interruption; Insert Size: 432; Hand Direction: Left; Insert Style: SNMG; ANSI Designation: SNMG432LCPV720; Chip Breaker Type: C; ISO Designation: SNMG120408L-C; Included Angle: 90 degrees; Machining Operations: Boring, Chamfering, External Turning, Facing; Insert Grade: PV720; Workpiece Material: Steel; Insert Shape: Square; Coating Process: PVD.

Material: Cermet. Coating/Finish: TiCN (MEGACOAT NANO). Series: ISOI. Unit of measure: Inch.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Left
Material
Cermet
Coating/Finish
TiCN (MEGACOAT NANO)
Insert Thickness (Fractional)
3/16
Corner Radius (Fractional)
1/32
Included Angle
90
ANSI Designation
SNMG432LCPV720
Insert Style
SNMG
Insert Thickness (Metric)
4.76
Insert Shape
Square
Insert Holding Method
Screw or Clamp
Insert Size
432
Old Material Number
8862658
Machining Operations
Boring, Chamfering, External Turning, Facing
Insert Grade
PV720
Rake
Negative
IC Size (Metric)
12.70
Corner Radius (Metric)
0.80
Number of Cutting Edges
8
Workpiece Material
Steel
ISO Designation
SNMG120408L-C
Cutting Range
Roughing
Usage Classification
Continuous to Light Interruption
IC Size (Fractional)
1/2
Coating Process
PVD
Chip Breaker Type
C
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/Hybrid_Cermet.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
