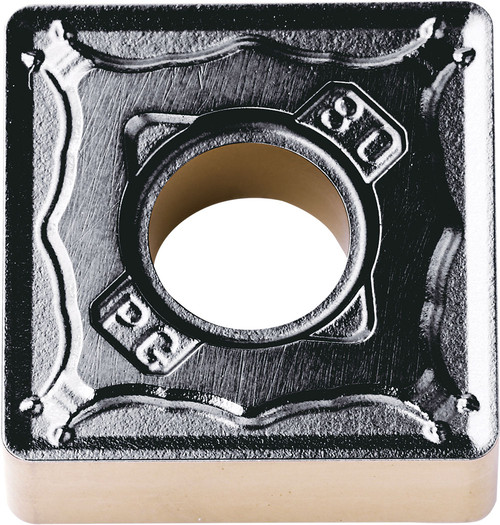

Kyocera Turning Insert SNMG432PG CA125P: TMK00184

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TMK00184
$18.77

Kyocera ISOI turning insert for steel, 1/2 in (12.70 mm) IC, square shape, negative rake, 8 cutting edges, medium-roughing cutting range, screw or clamp insert holding, neutral hand. Carbide, TiCN/Al2O3/TiN (CVD) coating. Manufacturer part number TMK00184.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Coating/Finish
TiCN/Al2O3/TiN
Insert Thickness (Fractional)
3/16
Corner Radius (Fractional)
1/32
Included Angle
90
ANSI Designation
SNMG432PGCA125P
Insert Style
SNMG
Insert Thickness (Metric)
4.76
Insert Shape
Square
Insert Holding Method
Screw or Clamp
Insert Size
432
Machining Operations
Boring, Chamfering, External Turning, Facing
Insert Grade
CA125P
Rake
Negative
IC Size (Metric)
12.70
Corner Radius (Metric)
0.80
Number of Cutting Edges
8
Workpiece Material
Steel
ISO Designation
SNMG120408PG
Cutting Range
Medium-Roughing
Usage Classification
Continuous to Light Interruption
IC Size (Fractional)
1/2
Coating Process
CVD
Chip Breaker Type
PG
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/CA115P_CA125P_CVD_Coated_Carbide_for_Steel.pdf
