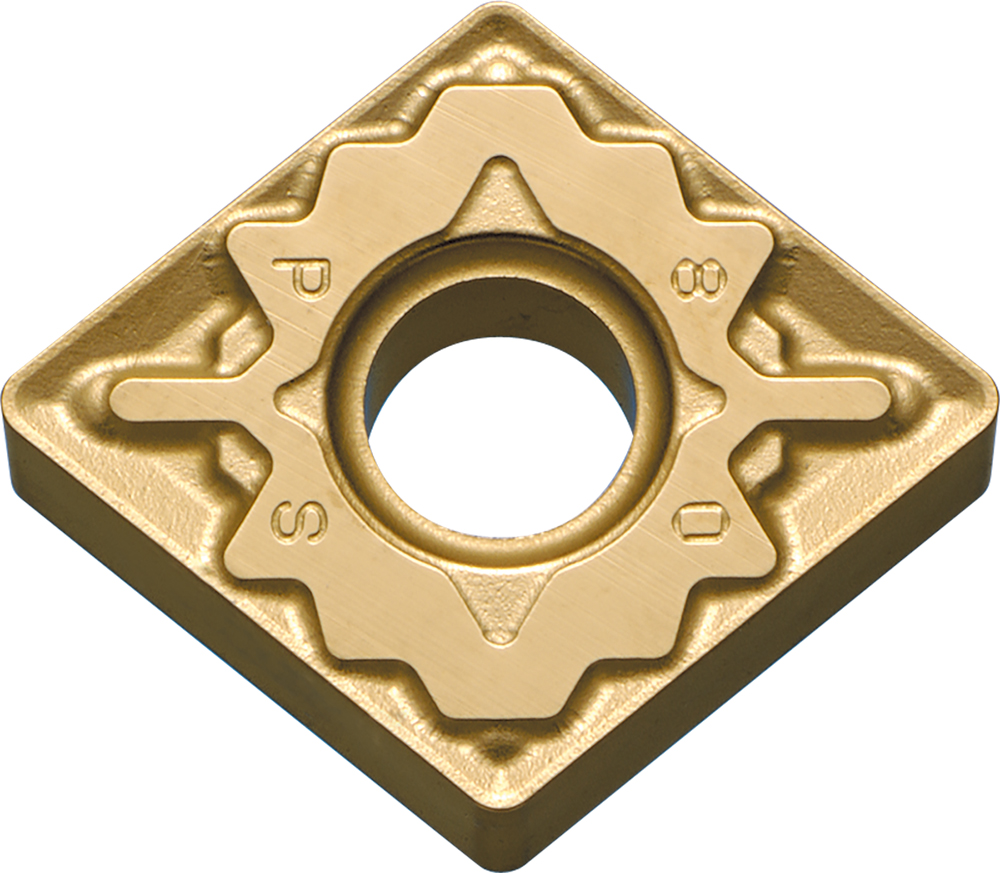

Kyocera SNMG 432PS CA515 Grade CVD Carbide, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TAB05216
$18.77
Kyocera SNMG 432PS CA515 Grade CVD Carbide, 0 Degree, Square, Negative Rake Angle, Neutral Turning Insert for Continuous and Medium-Roughing in (P) Carbon/Alloy Steel

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Coating/Finish
TiCN/Al2O3/TiN
Insert Thickness (Fractional)
3/16
Corner Radius (Fractional)
1/32
Included Angle
90
ANSI Designation
SNMG432PSCA515
Insert Style
SNMG
Insert Thickness (Metric)
4.76
Insert Shape
Square
Insert Holding Method
Screw or Clamp
Insert Size
432
Old Material Number
8840690
Machining Operations
Boring, Chamfering, External Turning, Facing
Insert Grade
CA515
Rake
Negative
IC Size (Metric)
12.70
Corner Radius (Metric)
0.80
Number of Cutting Edges
8
Workpiece Material
Steel
ISO Designation
SNMG120408PS
Cutting Range
Medium-Roughing
Usage Classification
Continuous
IC Size (Fractional)
1/2
Coating Process
CVD
Chip Breaker Type
PS
Pack quantity
10
