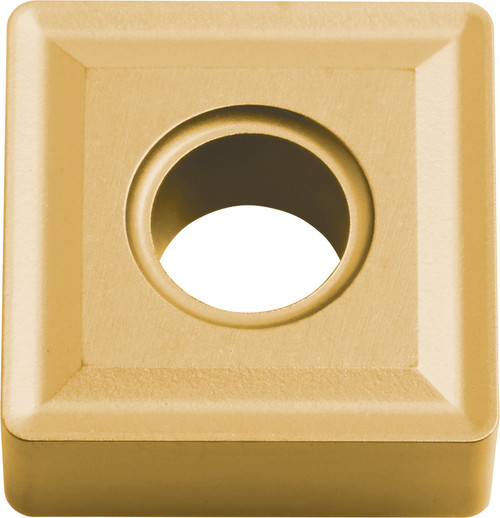

Kyocera Turning Insert SNMG433 CA510: TAA05152

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TAA05152
$18.77

Kyocera ISOI turning insert for steel, 1/2 in (12.70 mm) IC, square shape, negative rake, 8 cutting edges, roughing cutting range, screw or clamp insert holding, neutral hand. Carbide, TiCN/Al2O3/TiN (CVD) coating. Manufacturer part number TAA05152.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Coating/Finish
TiCN/Al2O3/TiN
Insert Thickness (Fractional)
3/16
Corner Radius (Fractional)
3/64
Included Angle
90
ANSI Designation
SNMG433CA510
Insert Style
SNMG
Insert Thickness (Metric)
4.76
Insert Shape
Square
Insert Holding Method
Screw or Clamp
Insert Size
433
Machining Operations
Boring, Chamfering, External Turning, Facing
Insert Grade
CA510
Rake
Negative
IC Size (Metric)
12.70
Corner Radius (Metric)
1.20
Number of Cutting Edges
8
Workpiece Material
Steel
Cutting Range
Roughing
Usage Classification
Continuous
IC Size (Fractional)
1/2
Coating Process
CVD
ISO Designation
SNMG120412
Pack quantity
10
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/CA5_Series_W.pdf
