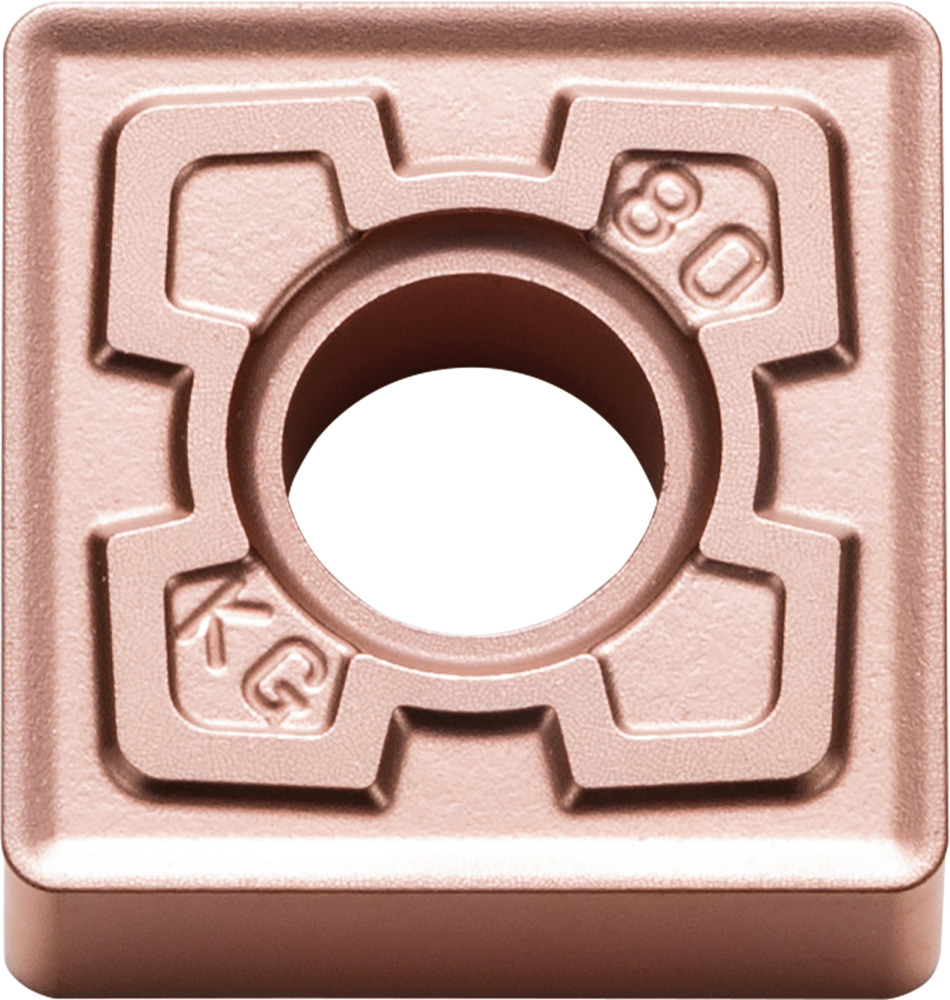

Kyocera Turning Insert SNMG433KG CA320: TME05271

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TME05271
$18.77

Kyocera ISOI turning insert for cast iron, 1/2 in (12.70 mm) IC, square shape, negative rake, 8 cutting edges, medium cutting range, screw or clamp insert holding, neutral hand. Carbide, TiCN/Al2O3/Ti (CVD) coating. Manufacturer part number TME05271.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Coating/Finish
TiCN/Al2O3/Ti
Insert Thickness (Fractional)
3/16
Corner Radius (Fractional)
3/64
Included Angle
90
ANSI Designation
SNMG433KGCA320
Insert Style
SNMG
Insert Thickness (Metric)
4.76
Insert Shape
Square
Insert Holding Method
Screw or Clamp
Insert Size
433
Machining Operations
Boring, Chamfering, External Turning, Facing
Insert Grade
CA320
Rake
Negative
IC Size (Metric)
12.70
Corner Radius (Metric)
1.20
Number of Cutting Edges
8
Workpiece Material
Cast Iron
ISO Designation
SNMG120412KG
Cutting Range
Medium
Usage Classification
Continuous to Heavy Interruption
IC Size (Fractional)
1/2
Coating Process
CVD
Chip Breaker Type
KG
Pack quantity
10
