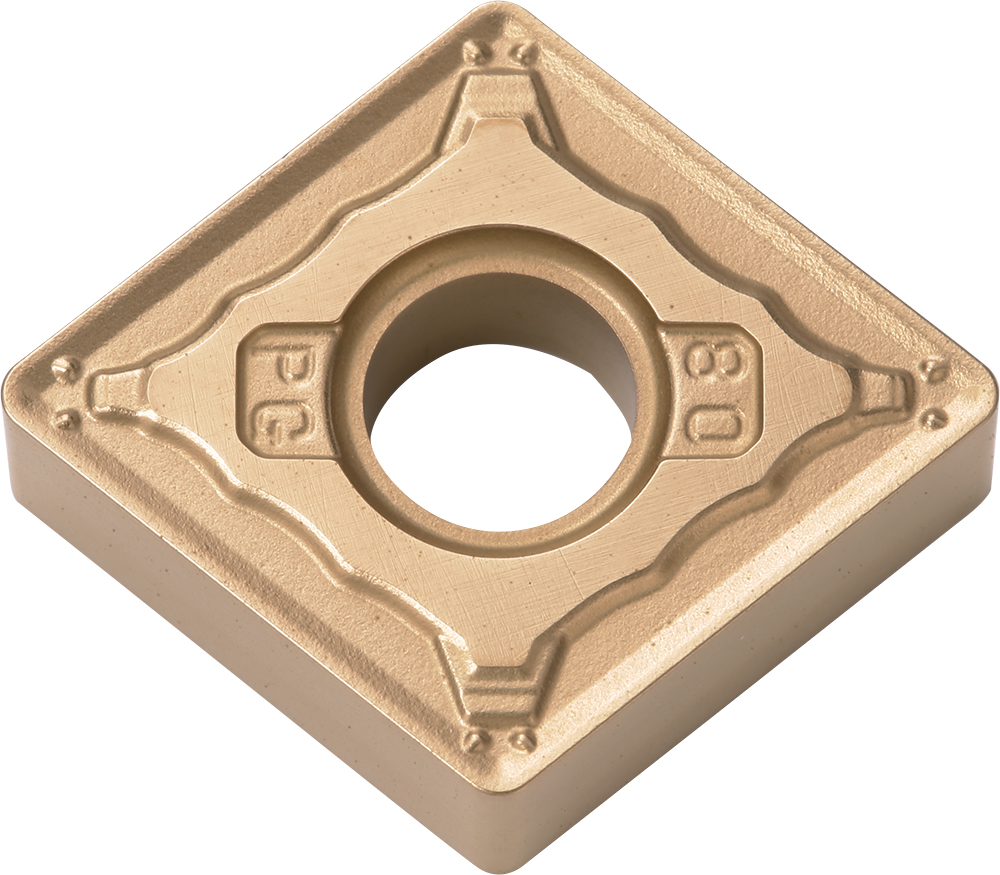

Kyocera SNMG 433PG PV730 Grade PVD Cermet, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLP00262
$19.49
Kyocera SNMG433PG PV730 Grade PVD Cermet, 0 Degree, Square, Negative Rake Angle, Neutral Turning Insert for Heavy Interruption and Medium-Roughing in (P) Carbon/Alloy Steel

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
Cermet
Coating/Finish
PVD
Primary Workpiece Material
(P) Carbon/Alloy Steel
Corner Radius
3/64 Inch
Included Angle
90 degrees
Thickness
3/16 Inch
Style
SNMG
Application
Boring, Chamfering, External Turning, Facing
Shape
90 Degree Square
Insert Holding Method
Screw or Clamp
Size
433
Old Material Number
8866027
ANSI Part Number
SNMG433PGPV730
ISO Part Number
SNMG120412PG
Rake
Negative
Material Group / Grade
PV730
Corner Radius (Metric)
1.20
Number of Cutting Edges
8
Thickness (Metric)
4.76
Chipbreaker
PG
Cutting Range
Medium-Roughing
Usage Classification
Heavy Interruption
Insert Included Angle
90 degrees
Inscribed Circle (Metric)
12.70
Inscribed Circle
1/2 Inch
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/Hybrid_Cermet.pdf
Kyocera SNMG 433PG PV730 Grade PVD Cermet, Indexable Turning Insert
$19.49
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
