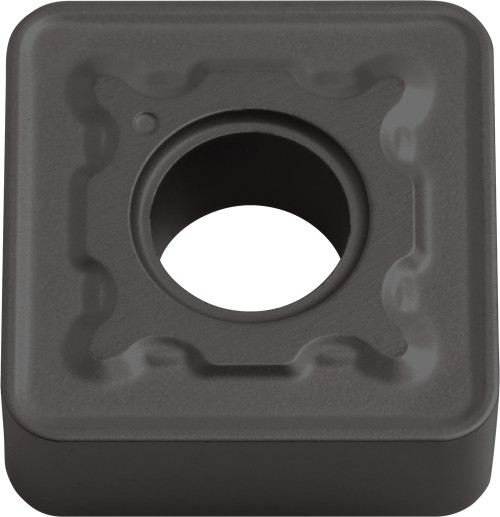

Kyocera Turning Insert SNMG433PH CA4515: TJH05262

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TJH05262
$18.77

Kyocera ISOI turning insert for cast iron, 1/2 in (12.70 mm) IC, square shape, negative rake, 8 cutting edges, roughing cutting range, screw or clamp insert holding, neutral hand. Carbide, CVD coated. Order reference TJH05262.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Insert Thickness (Metric)
4.76
IC Size (Metric)
12.70
Corner Radius (Fractional)
3/64
Included Angle
90
ANSI Designation
SNMG433PHCA4515
Insert Style
SNMG
Machining Operations
Boring, Chamfering, External Turning, Facing
Insert Shape
Square
Insert Holding Method
Screw or Clamp
Insert Size
433
Insert Grade
CA4515
Workpiece Material
Cast Iron
Rake
Negative
Insert Thickness (Fractional)
3/16
Corner Radius (Metric)
1.20
Number of Cutting Edges
8
Coating Process
CVD
ISO Designation
SNMG120412PH
Cutting Range
Roughing
Usage Classification
Heavy Interruption
IC Size (Fractional)
1/2
Chip Breaker Type
PH
Pack quantity
10
