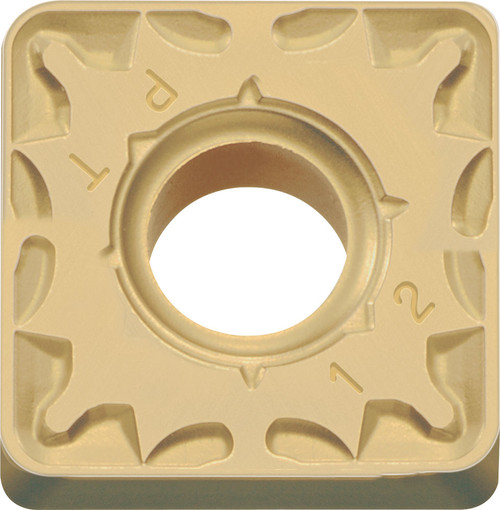

Kyocera Turning Insert SNMG433PT CA530: TAD05221

Kyocera Turning Insert SNMG433PT CA530, manufacturer part number TAD05221.

Specifications: IC Size: 1/2 in (12.70 mm); Insert Thickness: 3/16 in (4.76 mm); Corner Radius: 3/64 in (1.20 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8840731; Rake: Negative; Number of Cutting Edges: 8; Cutting Range: Medium-Roughing; Usage Classification: Continuous to Heavy Interruption; Insert Size: 433; Hand Direction: Neutral; Insert Style: SNMG; ANSI Designation: SNMG433PTCA530; Chip Breaker Type: PT; ISO Designation: SNMG120412PT; Included Angle: 90 degrees; Machining Operations: Boring, Chamfering, External Turning, Facing; Insert Grade: CA530; Workpiece Material: Steel; Insert Shape: Square; Coating Process: CVD.

Material: Carbide. Coating/Finish: TiCN/Al2O3/TiN. Series: ISOI. Unit of measure: Inch.
