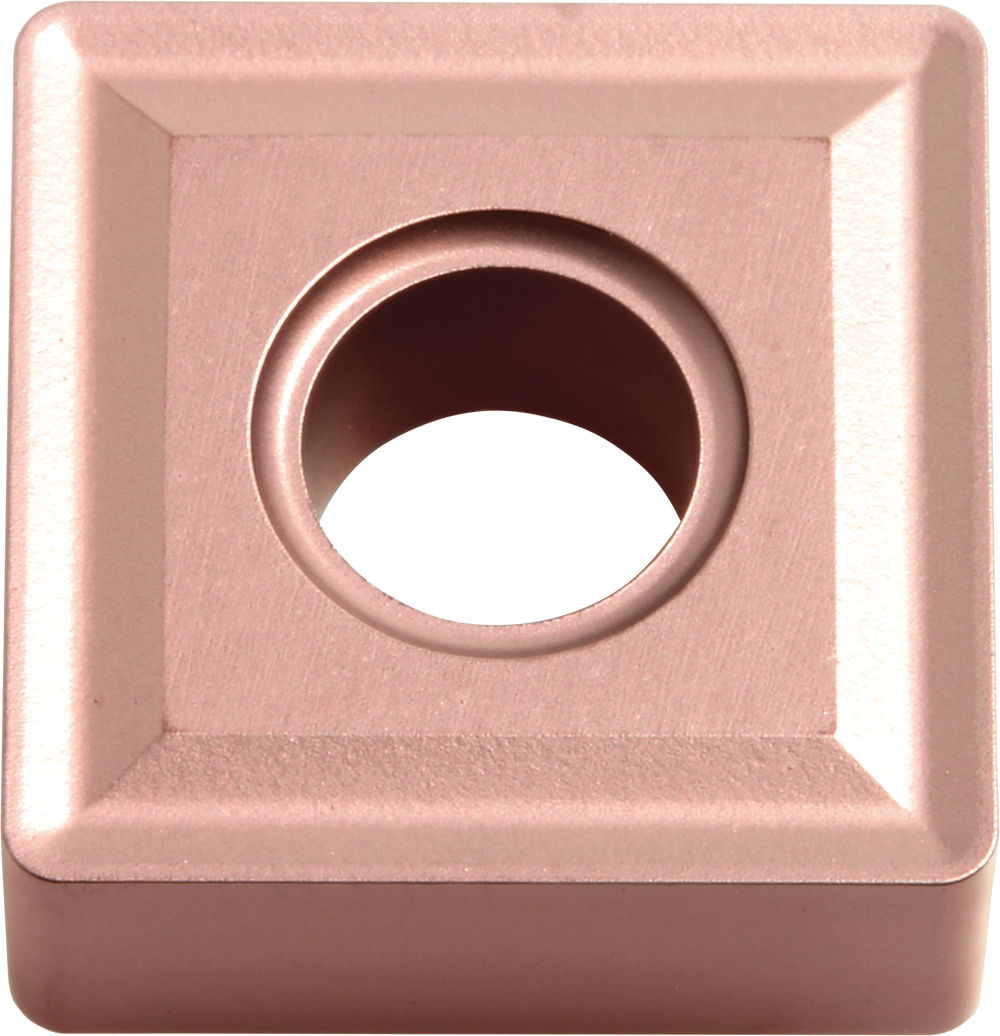

Kyocera Turning Insert SNMG434KH CA310: TMC05282

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TMC05282
$18.77

Kyocera Turning Insert SNMG434KH CA310, manufacturer part number TMC05282.

Specifications: IC Size: 1/2 in (12.70 mm); Insert Thickness: 3/16 in (4.76 mm); Corner Radius: 1/16 in (1.60 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8848649; Rake: Negative; Number of Cutting Edges: 8; Cutting Range: Medium-Roughing; Usage Classification: Continuous; Insert Size: 434; Hand Direction: Neutral; Insert Style: SNMG; ANSI Designation: SNMG434KHCA310; Chip Breaker Type: KH; ISO Designation: SNMG120416KH; Included Angle: 90 degrees; Machining Operations: Boring, Chamfering, External Turning, Facing; Insert Grade: CA310; Workpiece Material: Cast Iron; Insert Shape: Square; Coating Process: CVD.

Material: Carbide. Coating/Finish: TiCN/Al2O3/Ti. Series: ISOI. Unit of measure: Inch.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Coating/Finish
TiCN/Al2O3/Ti
Insert Thickness (Fractional)
3/16
Corner Radius (Fractional)
1/16
Included Angle
90
ANSI Designation
SNMG434KHCA310
Insert Style
SNMG
Insert Thickness (Metric)
4.76
Insert Shape
Square
Insert Holding Method
Screw or Clamp
Insert Size
434
Old Material Number
8848649
Machining Operations
Boring, Chamfering, External Turning, Facing
Insert Grade
CA310
Rake
Negative
IC Size (Metric)
12.70
Corner Radius (Metric)
1.60
Number of Cutting Edges
8
Workpiece Material
Cast Iron
ISO Designation
SNMG120416KH
Cutting Range
Medium-Roughing
Usage Classification
Continuous
IC Size (Fractional)
1/2
Coating Process
CVD
Chip Breaker Type
KH
Pack quantity
10
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Automotive_Tooling_Solutions.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/CA3-Series_W.pdf
