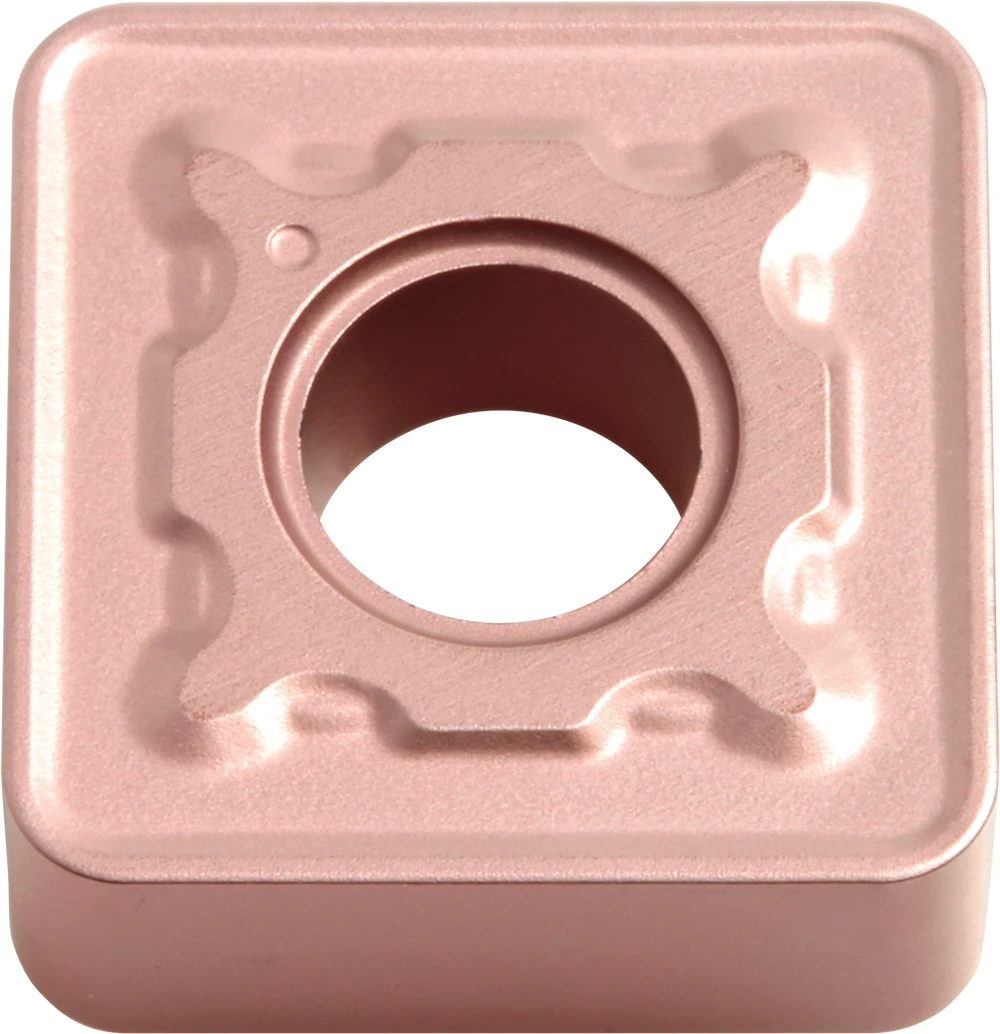

Kyocera Turning Insert SNMG434PH CA525: TAC05263

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TAC05263
$18.77

Kyocera Turning Insert SNMG434PH CA525, manufacturer part number TAC05263.

Specifications: IC Size: 1/2 in (12.70 mm); Insert Thickness: 3/16 in (4.76 mm); Corner Radius: 1/16 in (1.60 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8840736; Rake: Negative; Number of Cutting Edges: 8; Cutting Range: Roughing; Usage Classification: Continuous to Light Interruption; Insert Size: 434; Hand Direction: Neutral; Insert Style: SNMG; ANSI Designation: SNMG434PHCA525; Chip Breaker Type: PH; ISO Designation: SNMG120416PH; Included Angle: 90 degrees; Machining Operations: Boring, Chamfering, External Turning, Facing; Insert Grade: CA525; Workpiece Material: Steel; Insert Shape: Square; Coating Process: CVD.

Material: Carbide. Coating/Finish: TiCN/Al2O3/TiN. Series: ISOI. Unit of measure: Inch.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Coating/Finish
TiCN/Al2O3/TiN
Insert Thickness (Fractional)
3/16
Corner Radius (Fractional)
1/16
Included Angle
90
ANSI Designation
SNMG434PHCA525
Insert Style
SNMG
Insert Thickness (Metric)
4.76
Insert Shape
Square
Insert Holding Method
Screw or Clamp
Insert Size
434
Old Material Number
8840736
Machining Operations
Boring, Chamfering, External Turning, Facing
Insert Grade
CA525
Rake
Negative
IC Size (Metric)
12.70
Corner Radius (Metric)
1.60
Number of Cutting Edges
8
Workpiece Material
Steel
ISO Designation
SNMG120416PH
Cutting Range
Roughing
Usage Classification
Continuous to Light Interruption
IC Size (Fractional)
1/2
Coating Process
CVD
Chip Breaker Type
PH
Pack quantity
10
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/CA5_Series_W.pdf
Kyocera Turning Insert SNMG434PH CA525: TAC05263
$18.77
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
