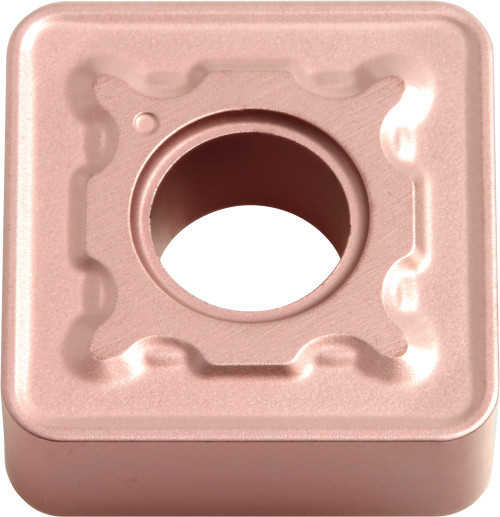

Kyocera Turning Insert SNMG543PH CA310: TMC05291

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TMC05291
$32.76

Kyocera ISOI turning insert for cast iron, 5/8 in (15.875 mm) IC, square shape, negative rake, 8 cutting edges, roughing cutting range, screw or clamp insert holding, neutral hand. Carbide, TiCN/Al2O3/Ti (CVD) coating. Manufacturer part number TMC05291.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Coating/Finish
TiCN/Al2O3/Ti
Insert Thickness (Metric)
6.35
Corner Radius (Fractional)
3/64
Included Angle
90
ANSI Designation
SNMG543PHCA310
Insert Style
SNMG
Machining Operations
Boring, Chamfering, External Turning, Facing
Insert Shape
Square
Insert Holding Method
Screw or Clamp
Insert Size
543
Insert Grade
CA310
Workpiece Material
Cast Iron
Rake
Negative
Insert Thickness (Fractional)
1/4
Corner Radius (Metric)
1.20
Number of Cutting Edges
8
Coating Process
CVD
IC Size (Fractional)
5/8
Cutting Range
Roughing
Usage Classification
Continuous
IC Size (Metric)
15.875
Chip Breaker Type
PH
ISO Designation
SNMG150612PH
Pack quantity
10
