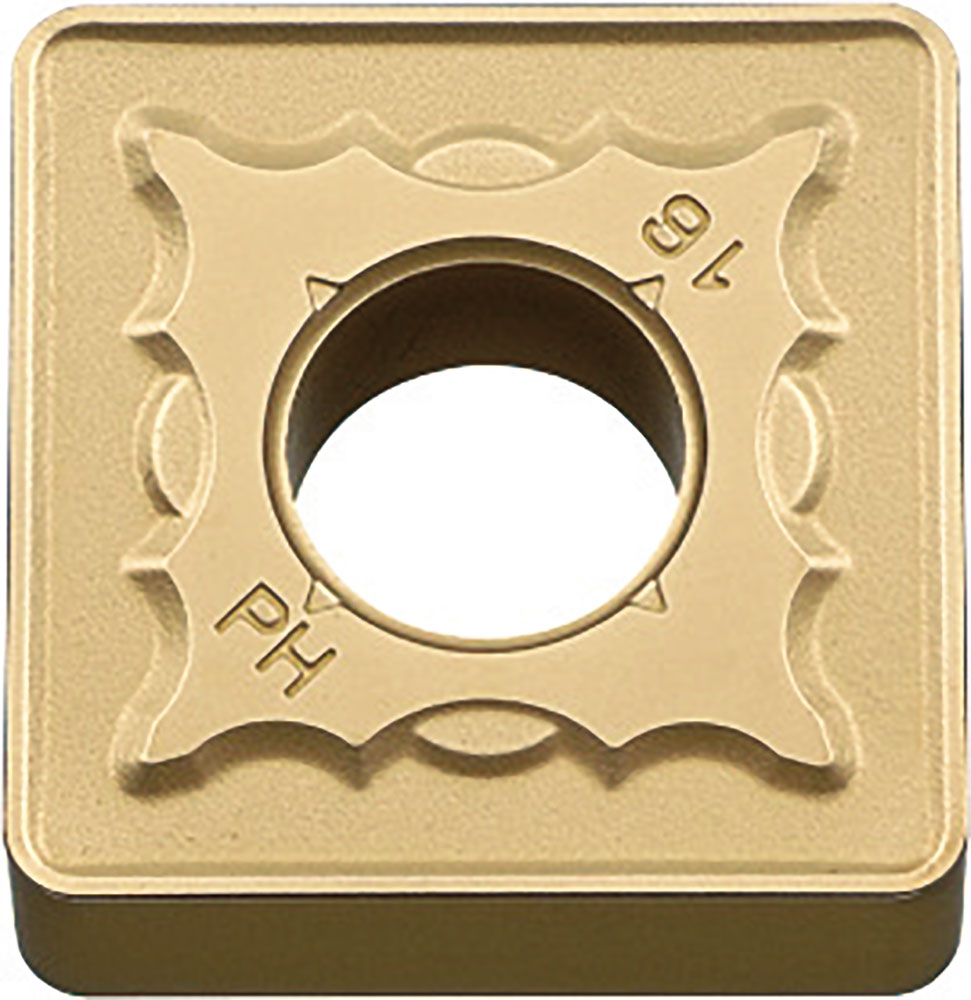

Kyocera Turning Insert SNMG543PH CA525: TAC05291

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TAC05291
$32.76

Kyocera Turning Insert SNMG543PH CA525, manufacturer part number TAC05291.

Specifications: IC Size: 5/8 in (15.875 mm); Insert Thickness: 1/4 in (6.35 mm); Corner Radius: 3/64 in (1.20 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8839744; Rake: Negative; Number of Cutting Edges: 8; Cutting Range: Roughing; Usage Classification: Continuous to Light Interruption; Insert Size: 543; Hand Direction: Neutral; Insert Style: SNMG; ANSI Designation: SNMG543PHCA525; Chip Breaker Type: PH; ISO Designation: SNMG150612PH; Included Angle: 90 degrees; Machining Operations: Boring, Chamfering, External Turning, Facing; Insert Grade: CA525; Workpiece Material: Steel; Insert Shape: Square; Coating Process: CVD.

Material: Carbide. Coating/Finish: TiCN/Al2O3/TiN. Series: ISOI. Unit of measure: Inch.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Coating/Finish
TiCN/Al2O3/TiN
Insert Thickness (Metric)
6.35
Corner Radius (Fractional)
3/64
Included Angle
90
ANSI Designation
SNMG543PHCA525
Insert Style
SNMG
Machining Operations
Boring, Chamfering, External Turning, Facing
Insert Shape
Square
Insert Holding Method
Screw or Clamp
Insert Size
543
Old Material Number
8839744
Insert Grade
CA525
Workpiece Material
Steel
Rake
Negative
Insert Thickness (Fractional)
1/4
Corner Radius (Metric)
1.20
Number of Cutting Edges
8
Coating Process
CVD
IC Size (Fractional)
5/8
Cutting Range
Roughing
Usage Classification
Continuous to Light Interruption
IC Size (Metric)
15.875
Chip Breaker Type
PH
ISO Designation
SNMG150612PH
Pack quantity
10
