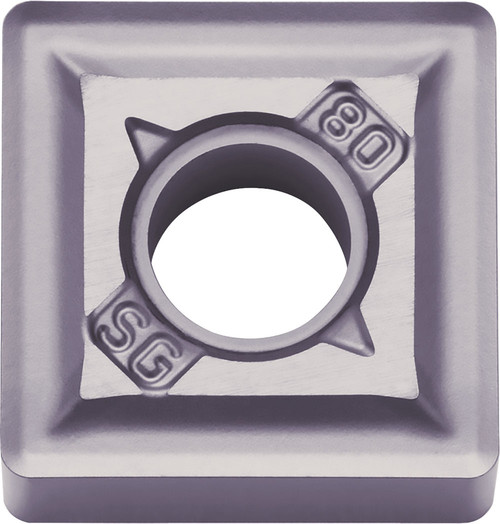

Kyocera SNMG 643SG PR1535 Grade PVD Carbide, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLC05320
$40.07
Kyocera SNMG 643SG PR1535 Grade PVD Carbide, 0 Degree, Square, Negative Rake Angle, Neutral Turning Insert for Light Interruption and Roughing in (S) Heat-Resistant Alloy, (S) Titanium Alloy, (M) Stainless Steel

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(M) Stainless Steel|(S) Heat-Resistant Alloy|(S) Titanium Alloy
Corner Radius
3/64 Inch
Included Angle
90 degrees
Thickness
1/4 Inch
Style
SNMG
Application
Boring, Chamfering, External Turning, Facing
Shape
90 Degree Square
Insert Holding Method
Screw or Clamp
Size
643
Old Material Number
8860185
ANSI Part Number
SNMG643SGPR1535
ISO Part Number
SNMG190612SG
Rake
Negative
Material Group / Grade
PR1535
Corner Radius (Metric)
1.20
Number of Cutting Edges
8
Thickness (Metric)
6.35
Chipbreaker
SG
Cutting Range
Roughing
Usage Classification
Light Interruption
Insert Included Angle
90 degrees
Inscribed Circle (Metric)
19.05
Inscribed Circle
3/4 Inch
Pack quantity
10
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/PR1535_for_Turning.pdf
