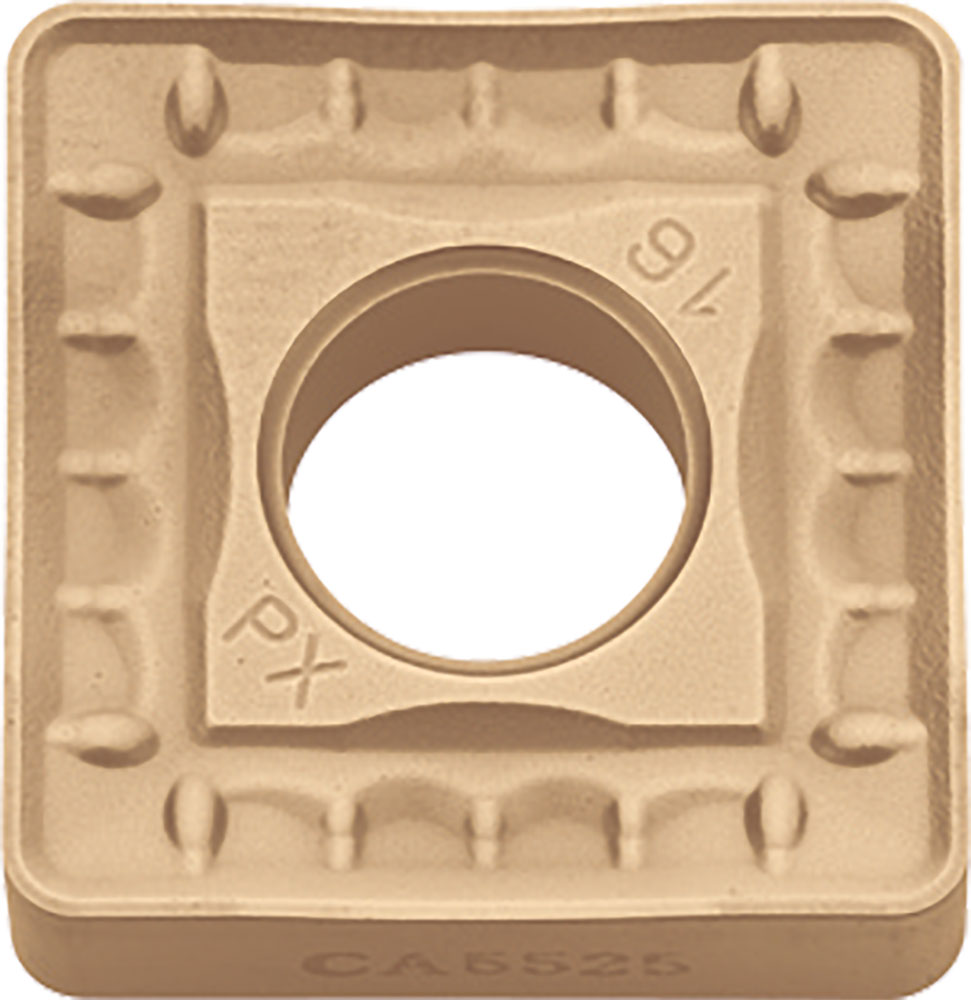

Kyocera SNMM 643PX CA530 Grade CVD Carbide, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TAD05345
$46.88
Kyocera SNMM 643PX CA530 Grade CVD Carbide, 0 Degree, Square, Negative Rake Angle, Neutral Turning Insert for Heavy Interruption and Roughing in (P) Carbon/Alloy Steel

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
Carbide
Coating/Finish
CVD
Primary Workpiece Material
(P) Carbon/Alloy Steel
Corner Radius
3/64 Inch
Included Angle
90 degrees
Thickness
1/4 Inch
Style
SNMM
Application
Boring, Chamfering, External Turning, Facing
Shape
90 Degree Square
Insert Holding Method
Screw or Clamp
Size
643
Old Material Number
8839529
ANSI Part Number
SNMM643PXCA530
ISO Part Number
SNMM190612PX
Rake
Negative
Material Group / Grade
CA530
Corner Radius (Metric)
1.20
Number of Cutting Edges
4
Thickness (Metric)
6.35
Chipbreaker
PX
Cutting Range
Roughing
Usage Classification
Heavy Interruption
Insert Included Angle
90 degrees
Inscribed Circle (Metric)
19.05
Inscribed Circle
3/4 Inch
Pack quantity
10
